Shenhai plahvatuskindel

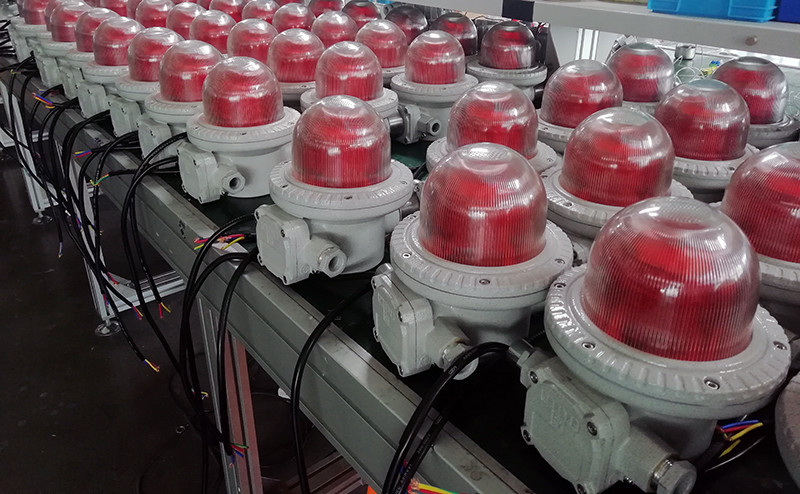

『Klikkige siia, et laadida alla toote PDF: Plahvatuskindel helisignaal ja visuaalne häire BBJ』
Tehnilised parameetrid
1. 10W pöörlev hoiatusvalgusti tavaline diood, suure heledusega LED-lampide helmik;
2. Vilgete arv: (150/min)
Heliallika parameetrid
Helitugevus: ≥ 90-180 dB;
| Mudel ja spetsifikatsioon | Plahvatuskindel märk | Valgusallikas | Lambi tüüp | Võimsus (W) | Välgete arv (korda/min) | Helitugevus (dB) | Kaal (kg) |
|---|---|---|---|---|---|---|---|
| BBJ-□ | Ex db eb ib mb IIC T6 Gb Ex tb IIIC T80°C Db Ex ib IIIC T80°C Db | LED | I | 5 | 150 | 90 | 1.1 |
| II | 120 | 3.16 | |||||
| III | 180 | 3.36 |
| Sisselaskeava niit | Kaabli välisläbimõõt | Kaitseaste | Korrosioonivastane klass |
|---|---|---|---|
| G3/4 | Φ10~Φ14mm | IP66 | WF2 |
Toote omadused
1. LED and HID light sources have high luminous efficiency, large brightness, continuous discharge time greater than 12 hours, low heat, and are more safe and reliable.
2. The high-energy memoryless battery can be charged at any time. Within two months after a charge, the storage capacity shall not be less than 85% of the full capacity, and the over discharge protection circuit shall be set to extend the service life of the battery.
3. The lamp head can be fixed on the lamp body or other supports for use, and can also be easily removed for handheld use. It can also be fixed on the manual lifting frame for arbitrary lifting within the height range of 1.2-2.8 meters. The bottom of the lamp body is equipped with a pulley for easy movement, which can easily move the position of the lamp body on the ground.
4. Fully sealed filling process design, which can work normally in rainstorm environment, and the specially made alloy shell can withstand strong impact and impact.
Paigaldamise mõõtmed
Kohaldatav ulatus
It is applicable to Class II tuleohtlik and explosive places. It is used to provide high brightness and wide range night lighting and other working sites with mobile lighting for various on-site operations, emergency repair, abnormal situation handling, etc. of the army, railway, electric power, public security, petrochemical and other units. (Zone 1, Zone 2)
