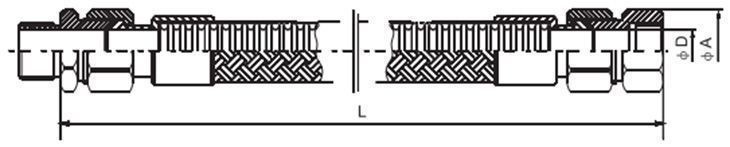

Example: Bng-X×700 Explosion-Proof Flexible Conduit
| Pipe Diameter (mm) | Pipe Inner Diameter (mm) | Thread Specification | Length L (mm) | Maximum Outer Diameter (A) | Minimum bending radius (mm) | |||||
| Type I | Type II | Type III | Imperial | American | Metric | Type I | Type II | |||
| 13 | 13 | 13 | 15 | G1/2" | NPT1/2 | M20*1.5 | 700 | 38 | 28 | 80 |
| 20 | 17 | 17 | 20 | G3/4" | NPT3/4 | M25*1.5 | 42 | 34 | 110 | |
| 25 | 21 | 21 | 25 | G1" | NPT1 | M32*1.5 | 46 | 40 | 145 | |
| 32 | 26 | 26 | 29 | G1 1/4" | NPT1 1/4 | M40*1.5 | 60 | 48 | 180 | |
| 40 | 30 | 30 | 36 | G1 1/2" | NPT1 1/2 | M50*1.5 | 65 | 55 | 210 | |
| 50 | 42 | 42 | 50 | G2" | NPT2 | M63*1.5 | 85 | 75 | 250 | |
| 70 | 50 | 50 | 64 | G2 1/2" | NPT2 1/2 | M75*1.5 | 100 | 90 | 350 | |
| 80 | 62 | 62 | 77 | G3" | NPT3 | M90*1.5 | 115 | 115 | 400 | |
| 100 | 85 | 90 | 95 | G4" | NPT4 | M110*1.5 | 145 | 145 | 500 | |
