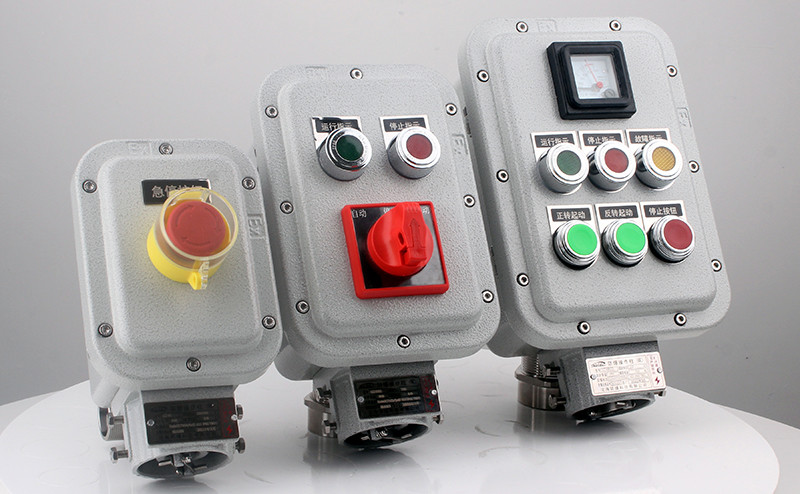

防爆操作コラム LCZ8030

「製品PDFはこちらからダウンロードできます： 防爆操作コラム LCZ8030』

技術パラメーター

製品の特徴

1. The shell is made of glass fiber reinforced unsaturated polyester resin pressed or high-quality stainless steel welded, which is corrosion-resistant, anti-static, impact resistant, and has good thermal stability;

2. Stainless steel exposed fasteners with high anti-corrosion performance;

3. This series of products adopts 安全性の向上 enclosure, with explosion-proof indicators, buttons, change-over switches, instruments, potentiometer and other explosion-proof components installed inside;

4. The explosion-proof components adopt a modular design with strong interchangeability;

5. Diversified functions of transfer switches, which can be customized according to user requirements; The switch handle can be equipped with a padlock to prevent accidental operation;

6. The glass fiber reinforced unsaturated polyester resin shell and cover adopt a curved sealing structure, which has good 防水 and dustproof performance. Hinges can be added according to requirements for easy maintenance;

7. Steel pipe or cable wiring can be used.

適用範囲

1.次のような用途に適しています。 爆発的 ゾーン1およびゾーン2のガス環境；

2.ゾーン21とゾーン22の場所に適している。 可燃性粉塵 環境だ；

3.クラスIIA、IIB、IICの爆発性ガス環境に適している；

4.以下の用途に適している。 温度 T1からT6のグループ；

5. It is applicable to dangerous environments such as oil exploitation, oil refining, chemical industry, gas stations, offshore oil platform, oil tankers, metal processing, etc. It can be used to control electromagnetic appliances in the middle and long distance in the circuit, or to control the on-off and switching of signal and control circuits, or to start, stop and reverse them locally or indirectly near the controlled motor; The operation column equipped with an ammeter can also monitor the operation of the motor or circuit conditions;

6. Suitable for places with high anti-corrosion requirements.
