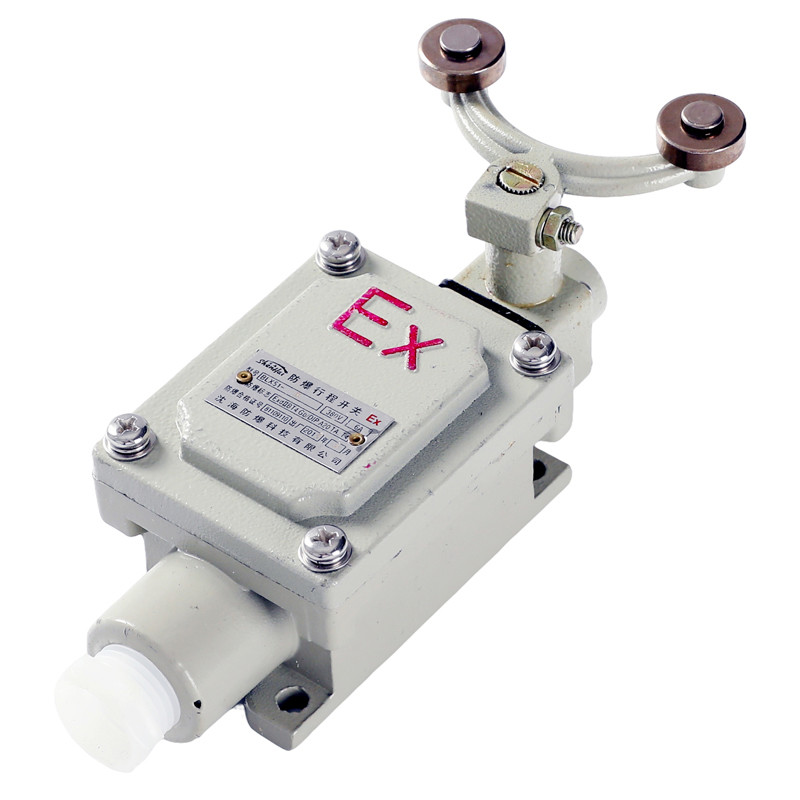

Explosion Proof Limit Switch BLX51-H

Type:Explosion Proof Limit Switch

Color:Grey

Ex Mark:Ex db eb mb px IIC T4 Gb

IP Rating:IP66

Model Number:BLX51-H

Warranty(Year):3-Year

Place of Origin:Zhejiang, China

Product Weight(kg):0.2

  • Product Details
  • About Us
  • FAQ
  • Packing & Delivery

Technical Parameter

explosion proof limit switch blx51

Rated voltageRated currentNumber of contactsExplosion proof signDegree of protectionAnti corrosion levelCable outer diameterInlet thread
AC220V5AOne normally open and one normally closedEx db IIB T6 Gb
Ex tb IIIC T80℃Db
IP65WF1*WF2Φ7~Φ10mmG1/2

Product Features

1. Aluminum alloy die-casting shell, after high-speed shot peening, the surface is coated with high-voltage electrostatic spraying, which is corrosion resistant and anti-aging;

2. Exposed stainless steel fasteners with high anti-corrosion performance;

3. Steel pipe or cable wiring is acceptable.

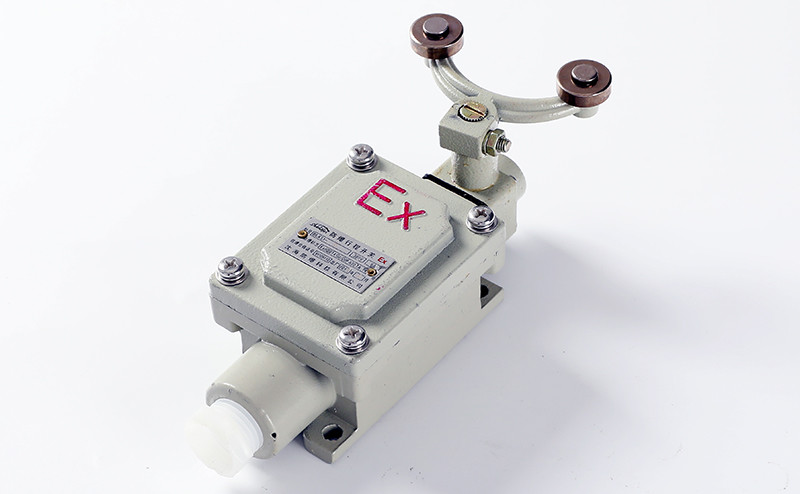

explosion proof limit switch blx51-h-7

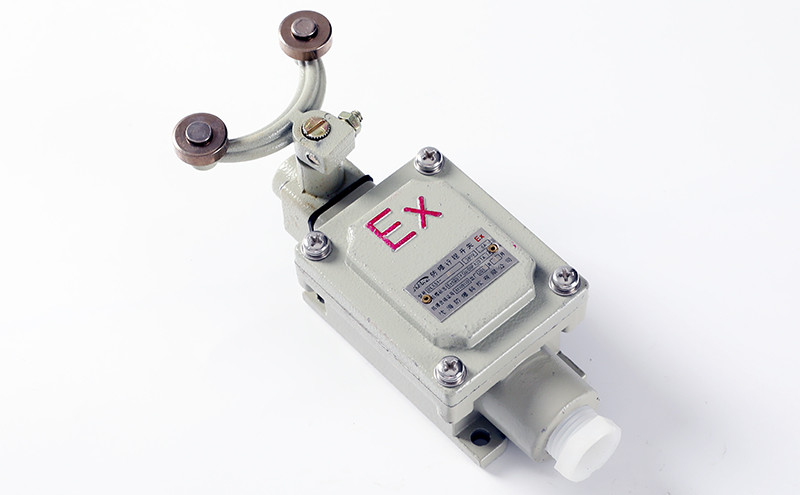

explosion proof limit switch blx51-h-8 explosion proof limit switch blx51-h-9

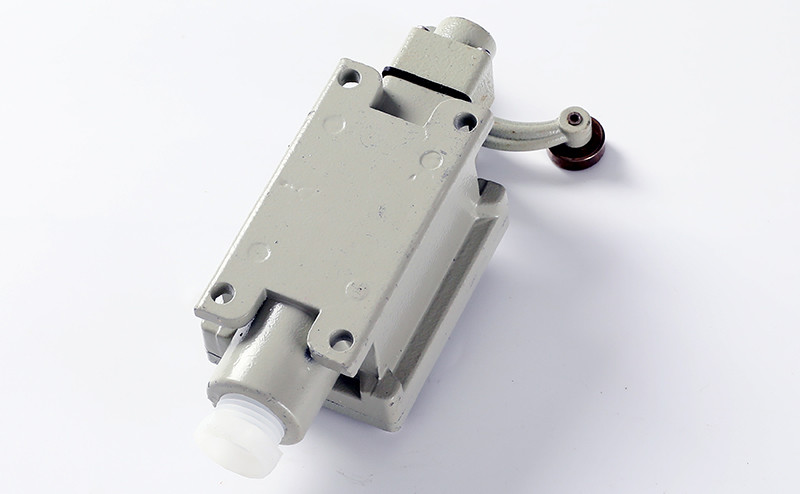

explosion proof limit switch blx51-h-10

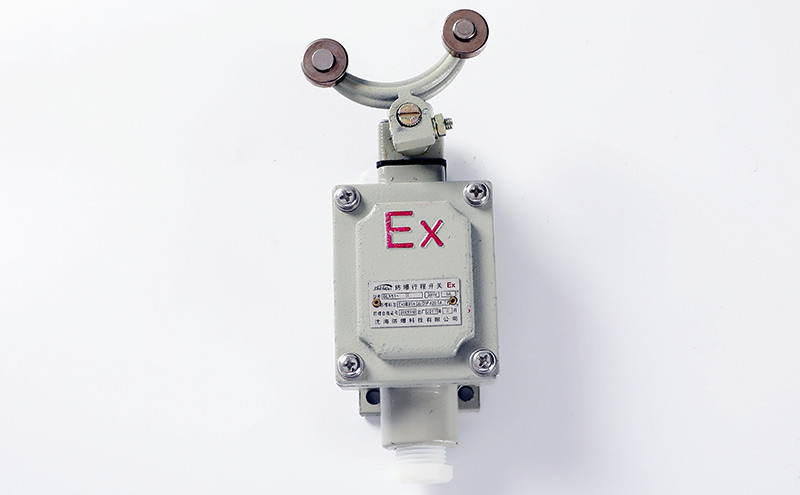

explosion proof limit switch blx51-h-11

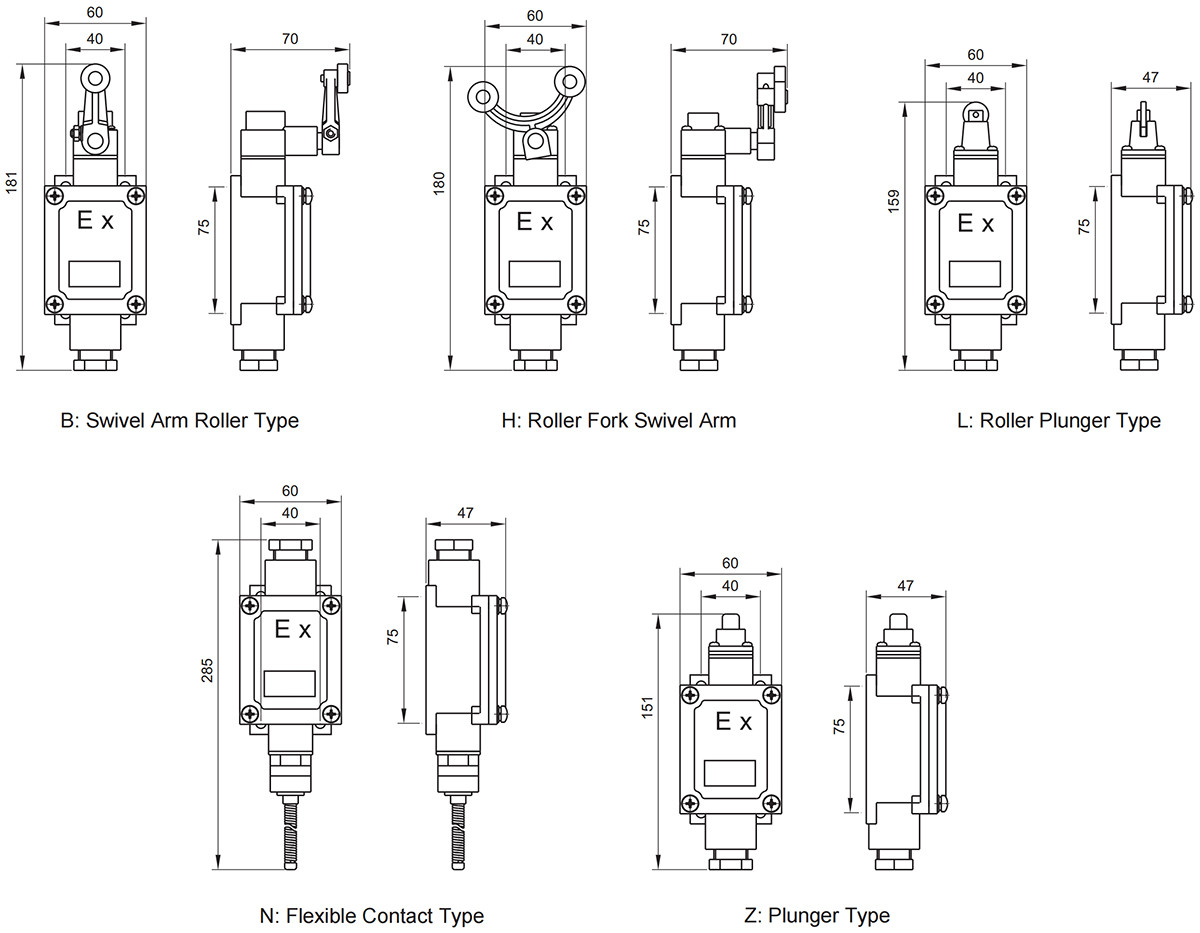

explosion proof limit switch blx51 installation dimensions

Applicable Scope

1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;

2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;

3. Suitable for IIA and IIB explosive gas environment;

4. Applicable to T1~T6 temperature groups;

5. It is applicable to the position signal feedback in the electrical control system in dangerous environments such as oil exploitation, oil refining, chemical industry, gas station, offshore oil platform, oil tanker, metal processing, medicine, textile, printing and dyeing, etc.

company profile-2 sample room our certificateexhibition

Q: Are you factory or trading company?
A: We are a factory and provide OEM services. Our main products are explosion-proof lightings, explosion-proof distribution box, explosion-proof cable gland, explosion-proof fans, explosion-proof junction box and anti-corrosion & dustproof & waterproof lights.

Q: What certificates do you have?
A: We have passed ATEX, IECEx, and with a lot of National Patents.

Q: What place are your products used in?
A: They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal, gas station and other industries.

Q: Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q: Can youaccept customized?
A: Yes. Please inform us and confirm the design firstly based on our sample.
