『제품 PDF를 다운로드하려면 여기를 클릭하세요: 방폭분배함 BXM(DX)』
기술적인 매개변수
Model | 정격전압 | Rated current of main circuit | Rated current of branch circuit | 부식 방지 등급 | Number of branches |
---|---|---|---|---|---|
BXM(디) | 220V 380V | 6ㅏ、10ㅏ、16ㅏ、20ㅏ、25ㅏ、32ㅏ、40ㅏ、50ㅏ、63ㅏ、80ㅏ、100ㅏ、125ㅏ、160ㅏ、200ㅏ、225ㅏ、250ㅏ、315ㅏ、400ㅏ、500ㅏ、630ㅏ | 1A~250A | 2、4、6、 8、10、12 | Ex db IIB T6GB Ex tb IIIC T80℃ Db |
케이블 외경 | 입구 스레드 | 보호 등급 | 부식 방지 등급 |
---|---|---|---|
Φ7~Φ80mm | M20-M110 NPT3/4-NPT4 | IP66 | WF1*WF2 |
제품 특징
1. The shell is made of aluminum alloy low pressure casting, and the surface of low carbon steel is sprayed with high-voltage electrostatic spraying Plastic, stainless steel surface wire drawing, 내식성, anti-aging;
2. This series of products is of 방염 structure: integrated pure flameproof structure,
A variety of specifications for users to choose;
3. The switch handle is usually made of PC material, which can also be made according to user requirements Metal material, main switch and sub switch operation panel can be determined according to color The switch handle can be configured with padlock to prevent misoperation;
4. Circuit breaker, AC contactor and thermal relay can be installed according to user requirements Electrical appliances, surge protector, universal change-over switch, fuse, mutual protection Electrical components such as inductor and ammeter;
5. Each circuit is equipped with power on signal indicator;
6. The sealing strip adopts the advanced technology of cast-in-place foaming one-time forming, with high Protection performance;
7. Vertical installation is equipped with corresponding mounting bracket, and outdoor use can be equipped with anti
The material of rain cover or protective cabinet can be customized according to user requirements;
8. 강관 또는 케이블 배선이 허용됩니다..
설치 치수
Model Selection

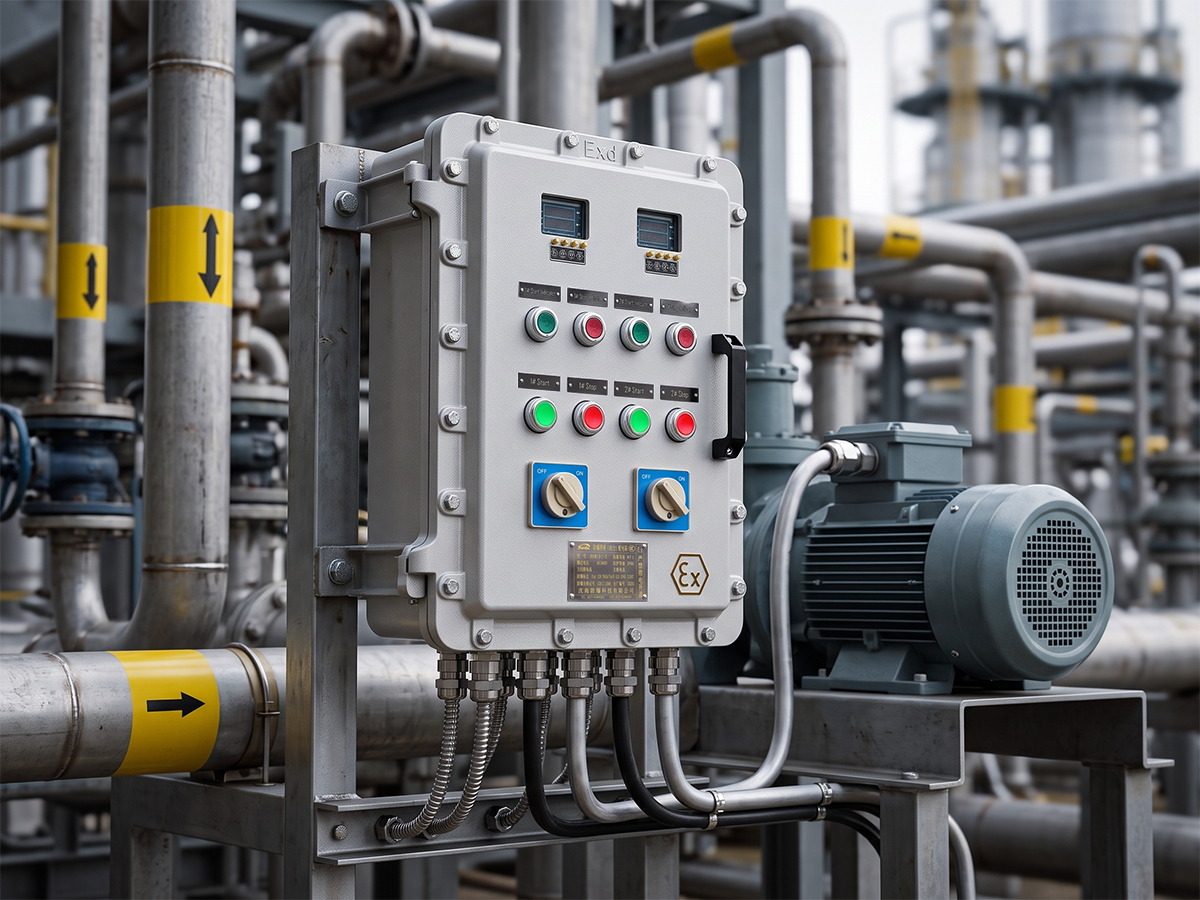

적용 범위
1. 그것은 지역에 있는 장소에 적용 가능합니다 1 및 구역 2 ~의 폭발물 가스 환경;
2. 그것은 지역에 있는 장소에 적용 가능합니다 21 그리고 22 ~의 가연성 먼지 환경;
3. Suitable for IIA and IIB explosive gas environment;
4. Applicable to T1~T6 온도 groups;
5. It is applicable to hazardous environments such as oil exploitation, 기름 정제, 화학 산업, 주유소, 해양 석유 플랫폼, 유조선, and metal processing.
