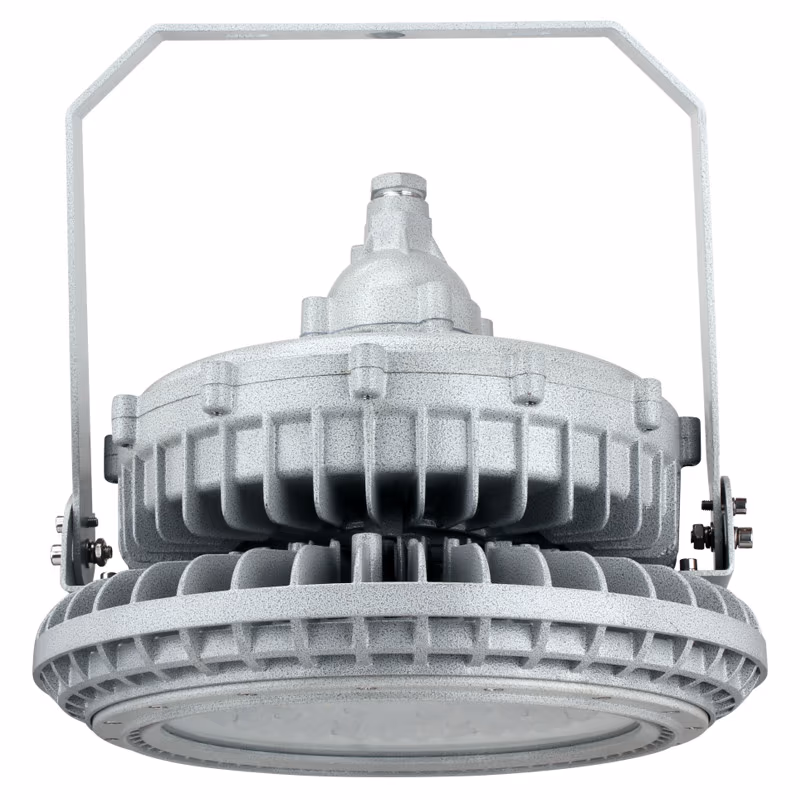

Shenhai Explosion-Proof

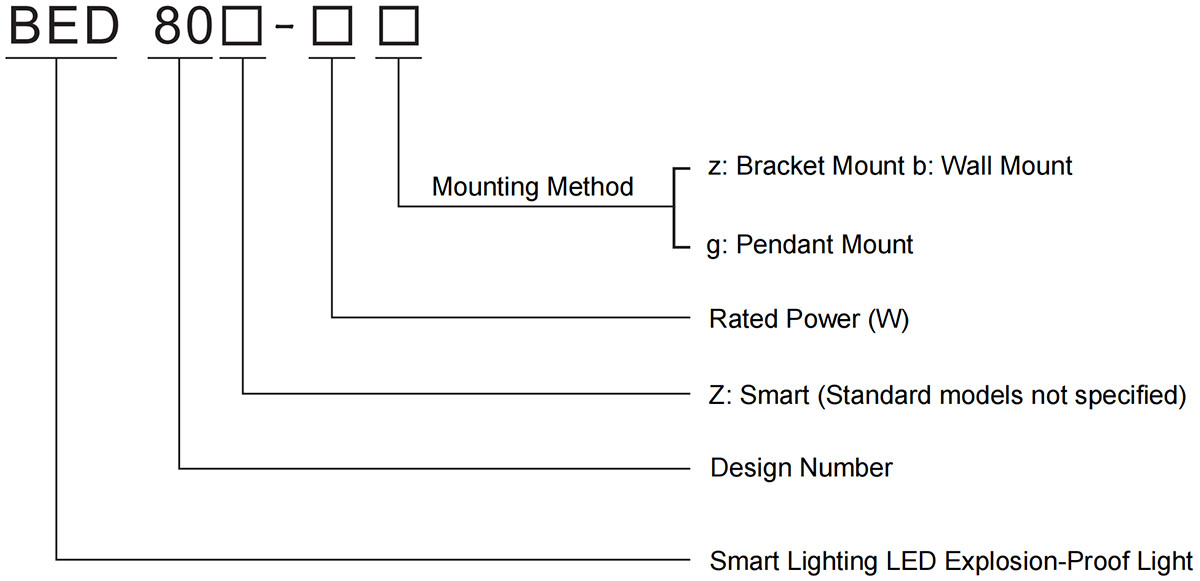

Model Meaning
Implementation Standard
GB/T3836.1、GB/T3836.2、GB/T3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-31

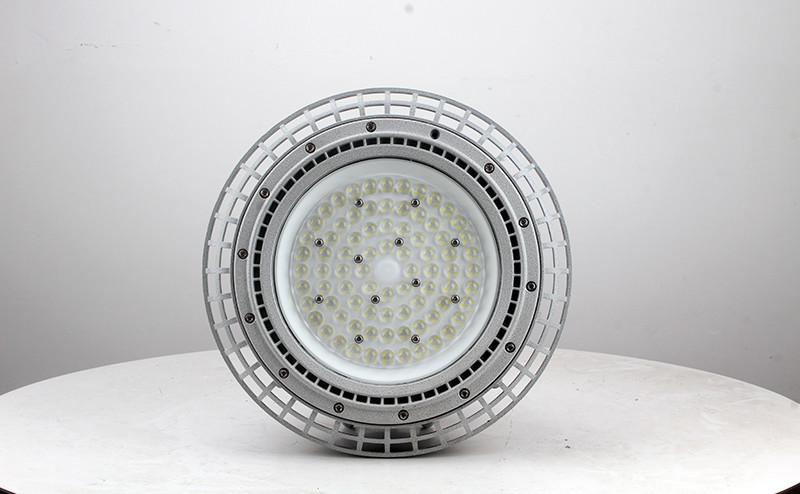

Feature Showcase
 | Premium brand chips, rationally arranged, unidirectional light emission, uniform and soft illumination, luminous efficacy ≥120lm/W, high color rendering index Ra＞70, extended service life, eco-friendly, color temperature 3000K~5700K. |  | Natural ventilation convection heat dissipation technology utilizes airflow to dissipate heat through heat dissipation channels and thermal flow pathways to the surface of the luminaire's heat sink . This effectively dissipates heat from the LED light source, ensuring the long-term operational reliability of explosion-proof LED lights. |
Technical Parameter
| Model and Specifications | Explosion-Proof Marking | Light Source | Luminaire Type | Power (W) | Luminous Flux (Lm) | Color Temperature (K) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| BED80 | Ex db IIC T6 Gb, Ex tb IIIC T80°C Db | LED | I | 30~60 | 3720~7500 | 3000~5700 | 5.2 |
| II | 70~100 | 8600~12500 | 7.3 | ||||
| III | 110~150 | 13500~18500 | 8.3 | ||||
| IV | 160~240 | 19500~28800 | 11.9 | ||||
| V | 250~320 | 30000~38400 | 13.9 |
| Rated Voltage/Frequency | Protection Rating | Corrosion Resistance Rating | Inlet Thread | Cable Outer Diameter |
|---|---|---|---|---|
| AC 220V, 36V, 24V DC 36V, 24V | IP66 | WF1 WF2* | G3/4" | Φ10~Φ14mm |

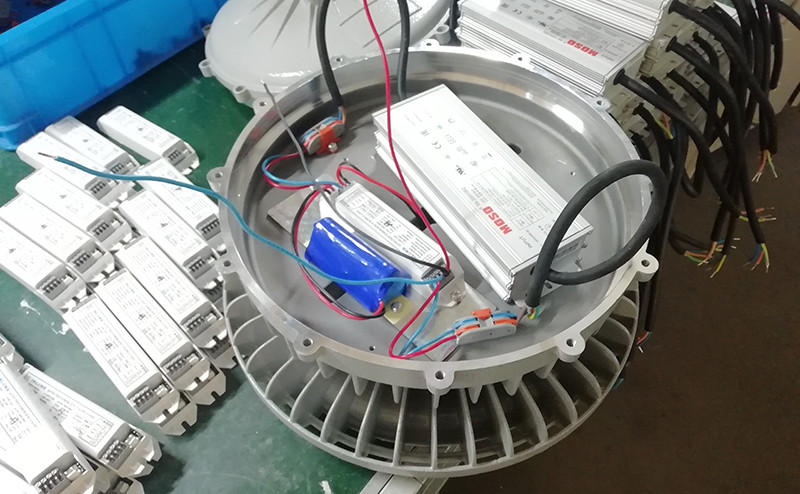

Emergency Parameters
| Emergency Response Time (s) | Charging Time (h) | Emergency Power (within 100W) | Emergency Power (within 200W) | Emergency Lighting Duration (min) |
|---|---|---|---|---|
| ≤0.3 | 24 | ≤20W | 20W~50W Optional | ≥60min、≥90min Optional |

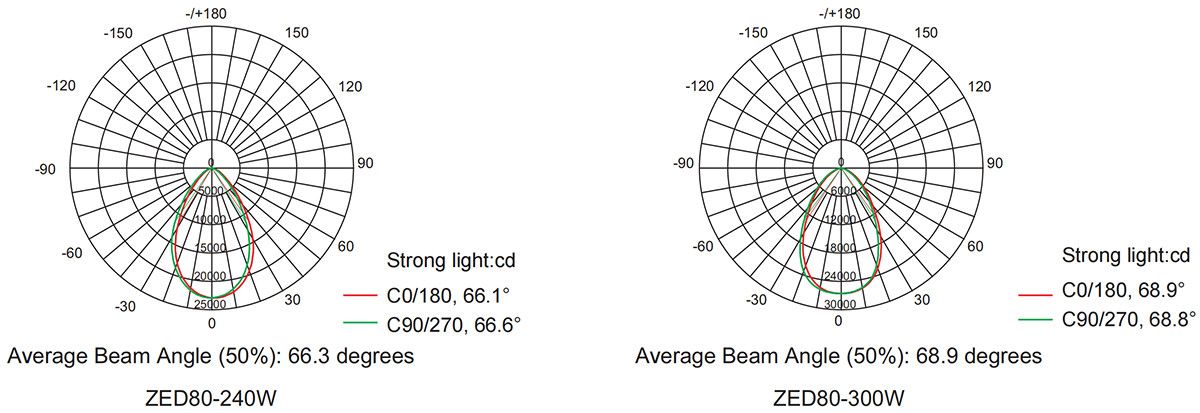

Light Distribution Curve

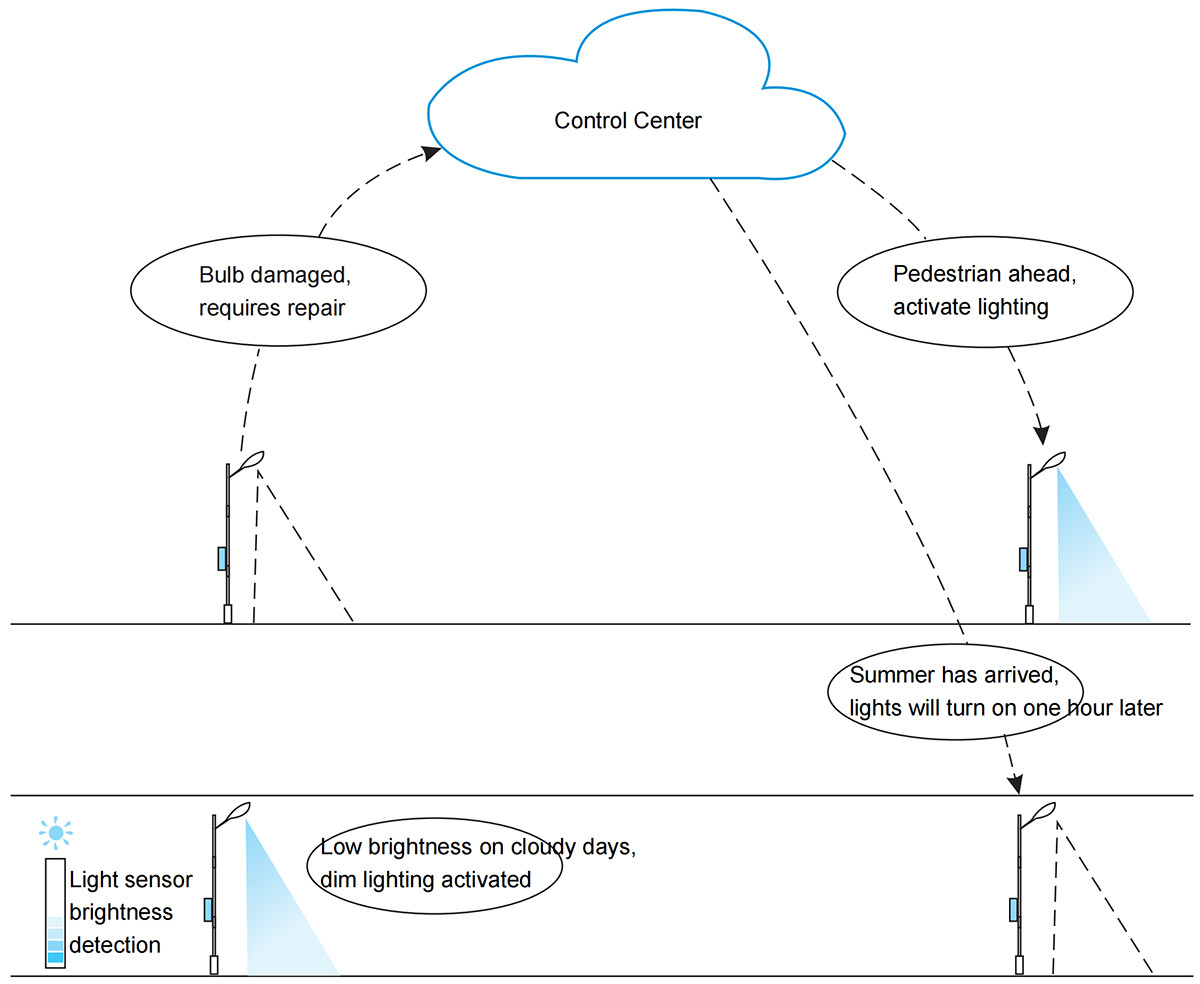

Product Features

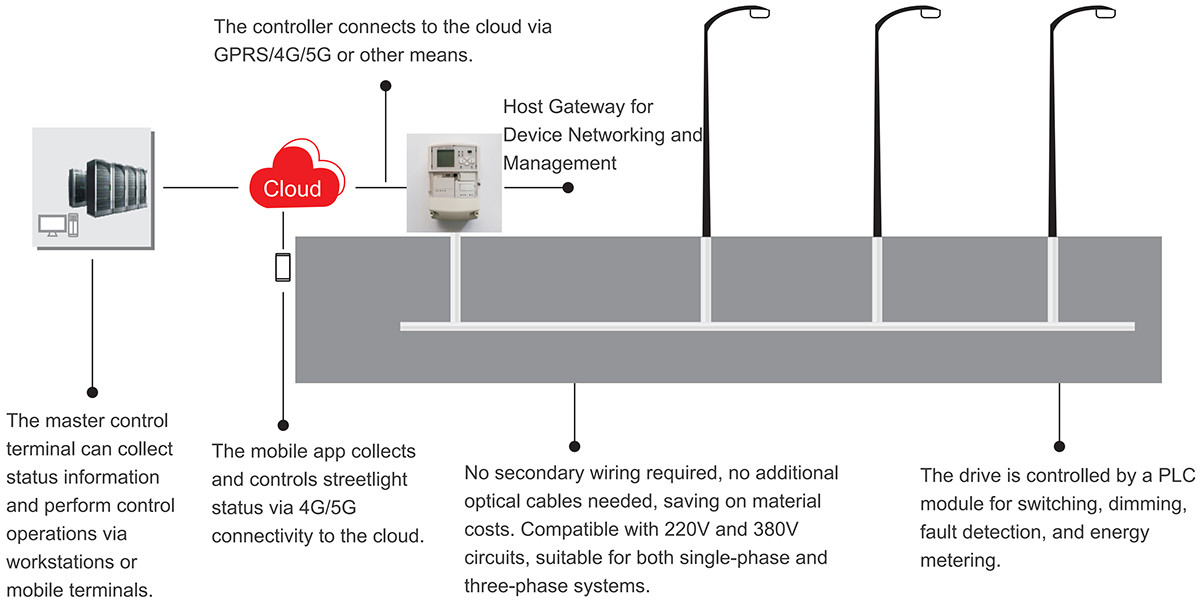

1. PLC (Power Line Carrier) technology;
2. Utilizes broadband power line carrier communication technology to transmit data over existing power lines without additional wiring, reducing installation costs; features high communication speeds with a physical layer peak rate of up to 0.507 Mbit/s; employs OFDM modulation for strong interference resistance;
3. Supports automatic rapid networking, completing setup within 10 seconds; accommodates up to 15-level relays for extended communication range;
4. Achieves over 99.9% first-attempt network connection success rate;
5. Enables data collection and reporting for input/output current/voltage, active power, apparent power, energy consumption, power factor, temperature, and lighting status;
6. High-precision data acquisition solution compliant with national electricity meter measurement standards;
7. Supports controller temperature detection for real-time monitoring of operating environment temperature;
8. Features overcurrent/overvoltage/undervoltage protection, overload protection, lighting status and line detection, default lighting functions;
9. Supports various customizable network analysis data acquisition functions;
10. Embeds lightweight RTOS system, supports concurrent data fault tolerance, cell reselection, and multi-frequency networking;
11. Supports zero-crossing detection for lighting control;
12. Automatically executes cloud configuration policies locally during network anomalies or outages;
13. Supports scheduled power cycling and time-controlled operation modes.

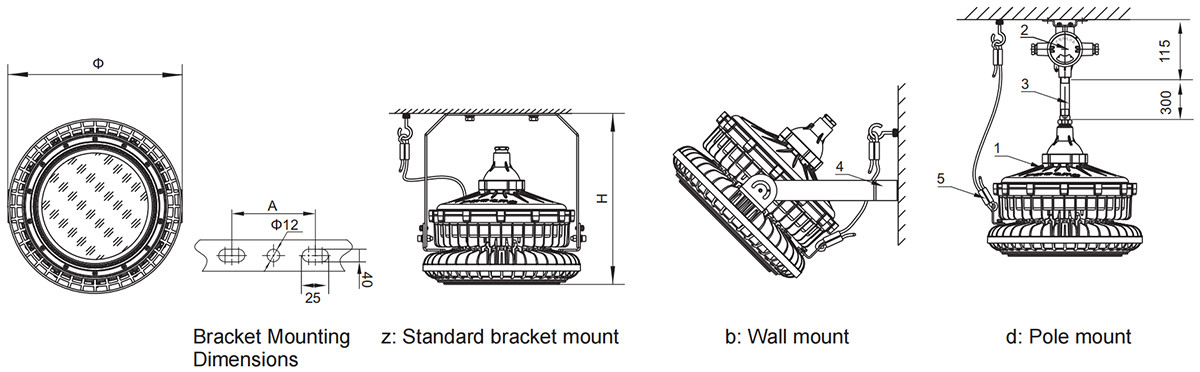

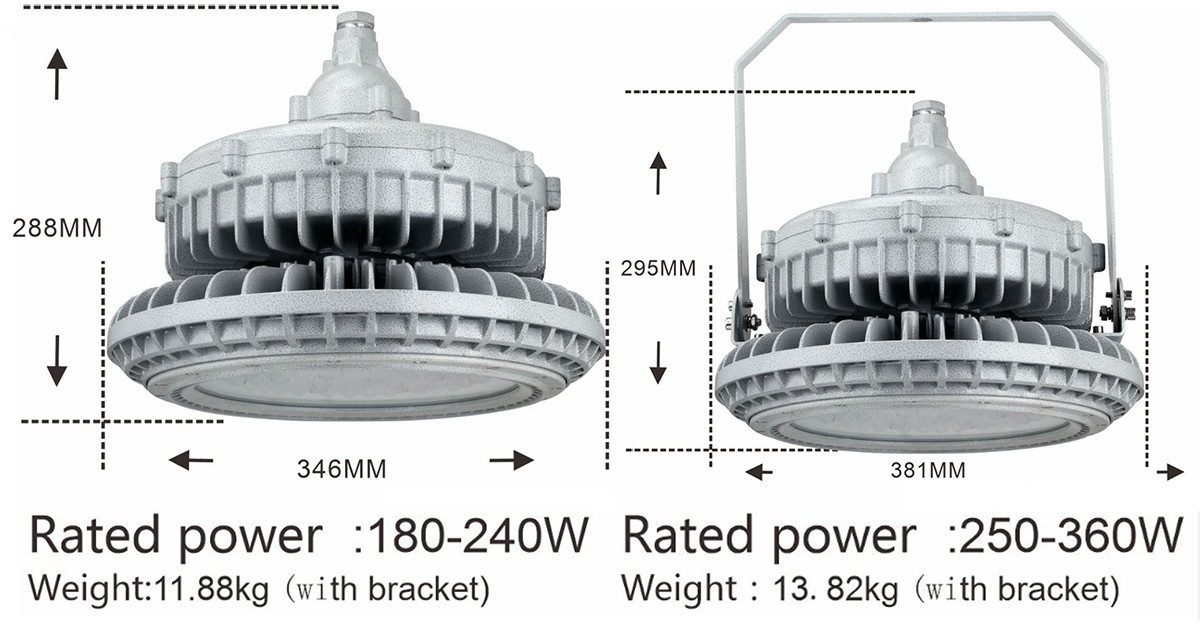

Installation Dimensions
| Serial Number | Specifications and Model | Luminaire Housing Type | Power Range (W) | Φ(mm) | h(mm) | A(mm) |
|---|---|---|---|---|---|---|
| 1 | BED80-60W | I | 30-60 | 249 | 100 | 318 |
| 2 | BED80-100W | II | 70-100 | 279 | 100 | 340 |
| 3 | BED80-150W | III | 110-150 | 315 | 120 | 340 |
| 4 | BED80-240W | IV | 160-240 | 346 | 150 | 344 |
| 5 | BED80-320W | V | 250-320 | 381 | 150 | 349 |
| Serial Number | Name | Remarks | Serial Number | Name | Remarks |
|---|---|---|---|---|---|
| 1 | Smart Lighting LED Explosion-Proof Light | / | 4 | Mounting Bracket | User-Selectable |
| 2 | Explosion-Proof Pendant Housing AH-dG3/4" | User-Selectable | 5 | Fall Arrest Steel Wire Rope | / |
| 3 | 300mm G3/4" Straight Pole | Length Options Available |
Applicable Scope
1. Suitable for Zone 1 and Zone 2 locations in explosive gas environments;
2. Suitable for Class IIA, IIB, and IIC explosive gas environments;
3. Suitable for Zone 21 and Zone 22 locations in explosive dust environments;
4. Suitable for Class IIIA, IIIB, and IIC explosive dust environments;
5. Suitable for temperature classes T1 to T6;
6. Suitable for energy-saving retrofit projects and locations where maintenance or replacement is difficult;
7. Widely used for lighting in petroleum extraction, refining, chemical processing, military manufacturing, textile production, food processing, offshore oil platforms, oil tankers, and similar applications.
