Model Meaning
Implementation Standard
GB/T3836.1、GB/T3836.2、GB/T3836.3、GB/T3836.31、IEC60079-0、IEC60079-1、IEC60079-7、IEC60079-31
Technical Parameter
| Specifications and Model | Explosion-Proof Marking | Light Source | Power (W) | Emergency power (W) | Luminous Flux (lm) | Color Temperature (K) |
|---|---|---|---|---|---|---|
| BPY | Ex db eb IIC T6 Gb, Ex tb IIIC T80°C Db | LED | 1x8 | 1x4 | 800 | 3000~5700 |
| 1x9 | 900 | |||||
| 1x16 | 1600 | |||||
| 1x18 | 1800 | |||||
| 1x22 | 2200 | |||||
| 1x24 | 2400 | |||||
| 2x8 | 1600 | |||||
| 2x9 | 1800 | |||||
| 2x16 | 3200 | |||||
| 2x18 | 3600 | |||||
| 2x22 | 4400 | |||||
| 2x24 | 4800 |
| Rated Voltage/Frequency | Inlet Thread | Cable Outer Diameter | Emergency Charging Time | Emergency Start-up Time | Emergency Lighting Duration | Protection Rating | Corrosion Resistance Rating |
|---|---|---|---|---|---|---|---|
| AC 220V, 36V, 24V, 12V DC 36V, 24V, 12V /50Hz | G1/2" | Φ7~Φ10mm | 24h | ≤0.3s | ≥90min | IP66 | WF1, WF2* |
Light Distribution Curve

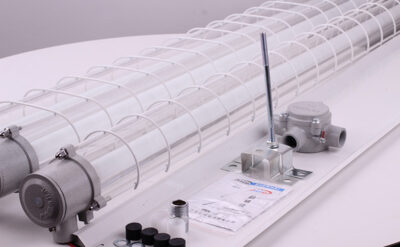

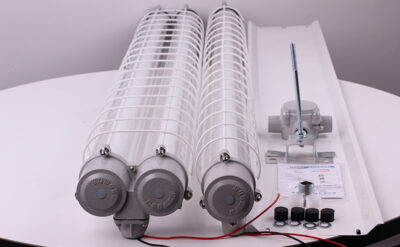

Product Features

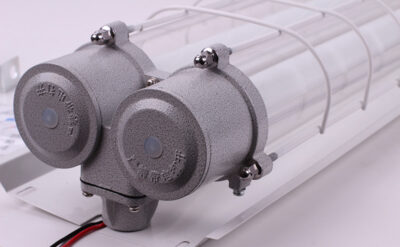

1. Aluminum alloy die-cast housing with high-speed shot blasting treatment and high-pressure electrostatic powder coating for corrosion resistance and aging resistance;
2. Stainless steel exposed fasteners for superior corrosion resistance;
3. High-strength tempered glass transparent tube with high light transmittance, passing rigorous impact and thermal shock tests for reliable explosion-proof performance;
4. Features a grid-type protective grille made of high-quality carbon steel with galvanized and powder-coated surfaces for dual corrosion resistance;
5. Equipped with renowned brand fluorescent tubes for extended lifespan and high luminous efficacy;
6. Incorporates an internal wiring compartment with dedicated terminals, enabling direct user installation without additional junction boxes for convenience and efficiency;
7. Modular plug-in design allows lamp tube replacement by simply loosening the end cap and pulling out the core assembly;
8. LED series utilizes the latest generation of maintenance-free energy-saving LED tubes, featuring extended lifespan, long-term maintenance-free operation, high energy efficiency, and wide voltage compatibility;
9. Optional emergency lighting module available upon request, automatically switching to emergency mode during power outages;
10. Compatible with both conduit and cable wiring systems.
Installation Dimensions

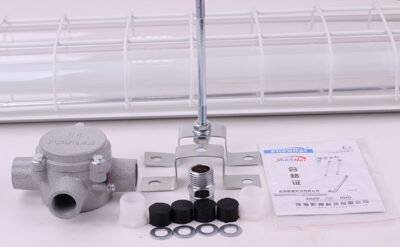

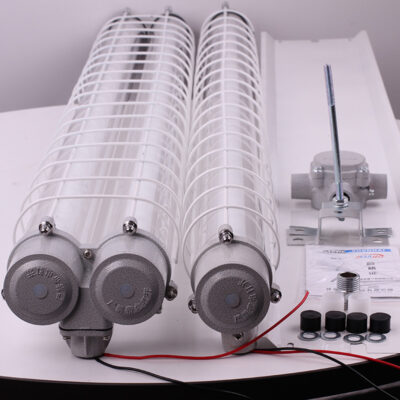

| Serial Number | Name | Remarks | Serial Number | Name | Remarks |
|---|---|---|---|---|---|
| 1 | BPY Series Explosion-Proof Fluorescent Lamp | 11 | Explosion-proof union BHJ-G3/4" one internal, one external | ||
| 2 | Double-Ended Screw M8×155mm | 12 | Steel pipe G3/4" × 300mm | ||
| 3 | Explosion-Proof Pipe Fitting BGJ-G1/2" (Two External Threads) | 13 | Steel Pipe G1/2" × 500mm | ||
| 4 | Explosion-Proof Junction Box for Fluorescent Lamps | 14 | Curved Pole G1 1/4 | ||
| 5 | Mounting Bracket | 15 | U-Clamp G1 1/4" | ||
| 6 | Double-Ended Screw M8×330mm | 16 | Explosion-Proof Union BHJ-G11/4“ (External G3/4”) | ||
| 7 | Steel Pipe G1/2"×240mm | 17 | Pipe Clamp G1 1/4" | ||
| 8 | Explosion-proof union BHJ-G3/4" (two external threads) | 18 | Mounting Bracket | ||
| 9 | Emergency device | 19 | Guardrail Pole G1 1/4" | ||
| 10 | Suction cup G1/2" | 20 | Flange Pole G1 1/4" |
Applicable Scope
1. Suitable for Zone 1 and Zone 2 locations in explosive gas environments;
2. Suitable for Class IIA and IIB explosive gas environments;
3. Suitable for Zone 21 and Zone 22 locations in explosive dust environments;
4. Suitable for Class IIIA, IIIB, and IIC explosive dust environments;
5. Suitable for temperature classes T1 to T6;
6. Suitable for work and scene lighting in hazardous environments such as petroleum extraction, refining, chemical processing, and military applications.
