Explosion-Proof Side-Wall Fan BWEXD

Model Meaning

Implementation Standard

GB/T3836.1、GB/T3836.2、GB/T3836.31、IEC60079-0、IEC 60079-1、IEC 60079-31

Technical Parameter

Explosion-Proof Marking	Protection Rating	Cable Outer Diameter	Entry Thread
Ex db IIC T4 Gb Ex tb IIIC T135°C Db	IP54	Φ10~Φ14	M26×1.5 or G3/4"

Model and Specifications	Impeller Diameter (mm)	Rated Voltage (V)	Rated Speed (r/min)	Impeller Angle	Airflow (m³/h)	Total Pressure (Pa)	Installed Power (kW)
BWEXD-2#	200	380/220	2800	43°	1230	112	0.09
			1450	43°	618	64	0.06
BWEXD-2.8#	280		2800	35°	2921	190	0.25
			1450		1510	105	0.18
BWEXD-3.15#	315		2800		3074	218	0.37
			1450		1998	141	0.25
BWEXD-3.55#	355		2800		3367	246	0.37
			1450		2188	160	0.25
BWEXD-4.#	400				3560	260	0.37
BWEXD-4.5 #	450			38°	3450	142	0.37
				42°	4644	150	0.55
BWEXD-5 #	5500	380		38°	7655	116	0.55
				43°	8316	123	0.75
BWEXD-5.6 #	560				9581	173	0.75
				48°	11682	186	1.1
BWEXD-6.3 #	630			41°	10739	154	1.1
				45.2°	14454	169	1.5
BWEXD-7.1 #	710			40°	13400	178	1.1
			960	43.5°	16160	189	1.5
				46°	14498	123	1.1
BWEXD-8 #	800			44°	31325	180	2.2
					37073	248	4.0
BWEXD-9 #	900			46°	35227	200	3.0
					39800	230	4.0
BWEXD-10 #	1000				48300	247	5.5
					54300	268	7.5
BWEXD-11.2 #	1120			42°	56460	353	7.5
				46°	67892	415	11

Product Features

1. This series of ventilators is designed based on the three-dimensional flow theory of impeller mechanics, with meticulously engineered test data ensuring excellent aerodynamic performance. They feature low noise, high efficiency, minimal vibration, and low energy consumption.

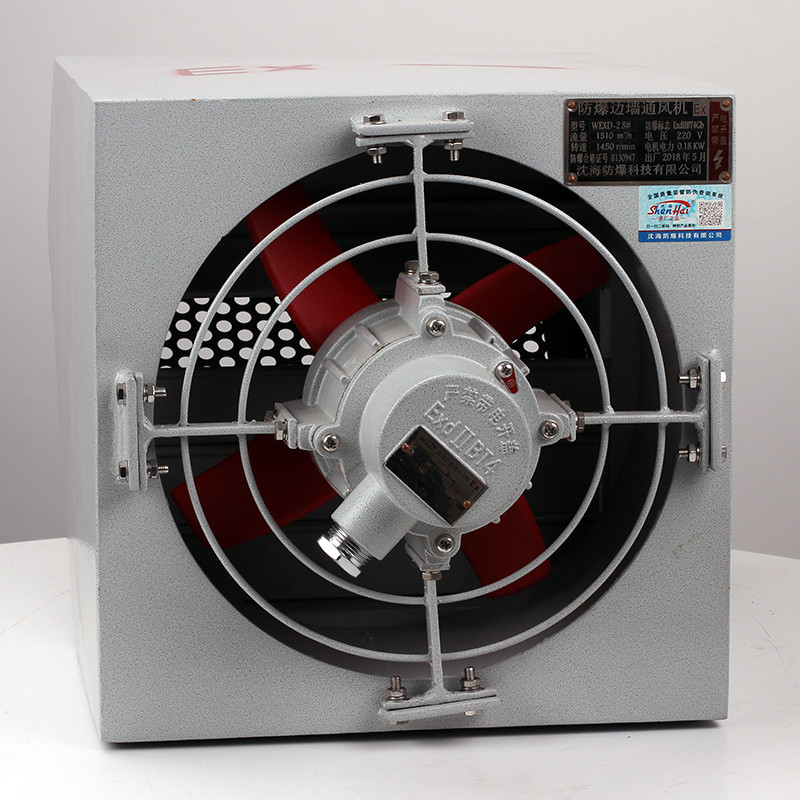

2. The product consists of an explosion-proof motor, impeller, air duct, protective cover, rain cover, gravity-type check valve, and insect screen.

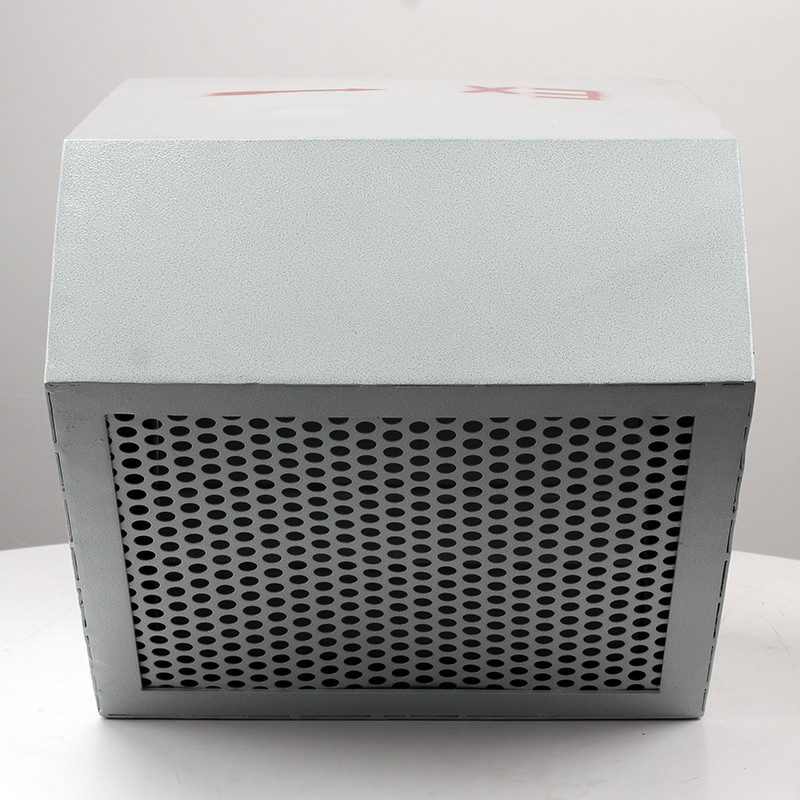

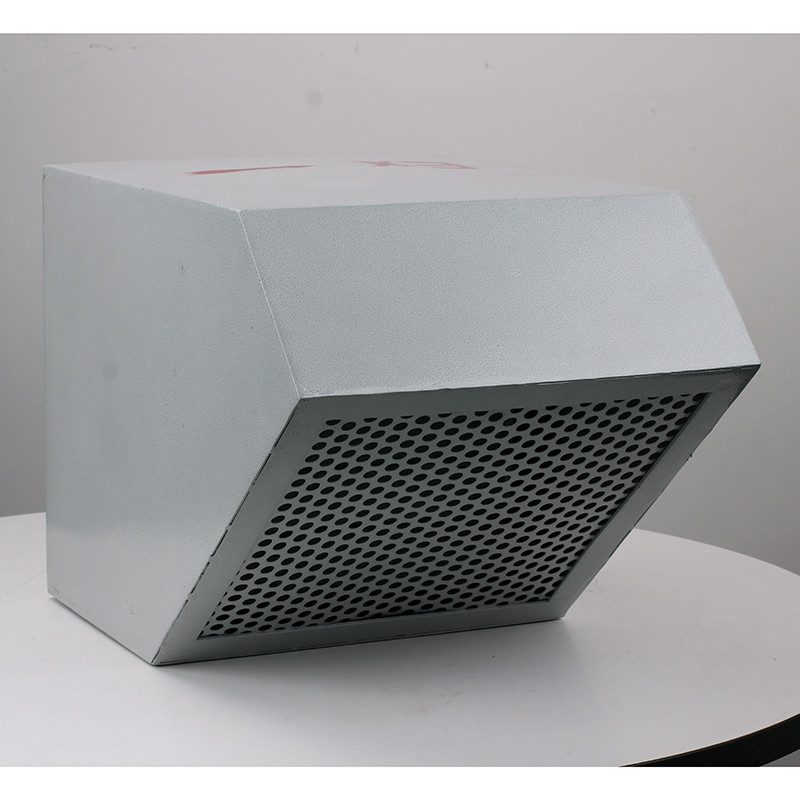

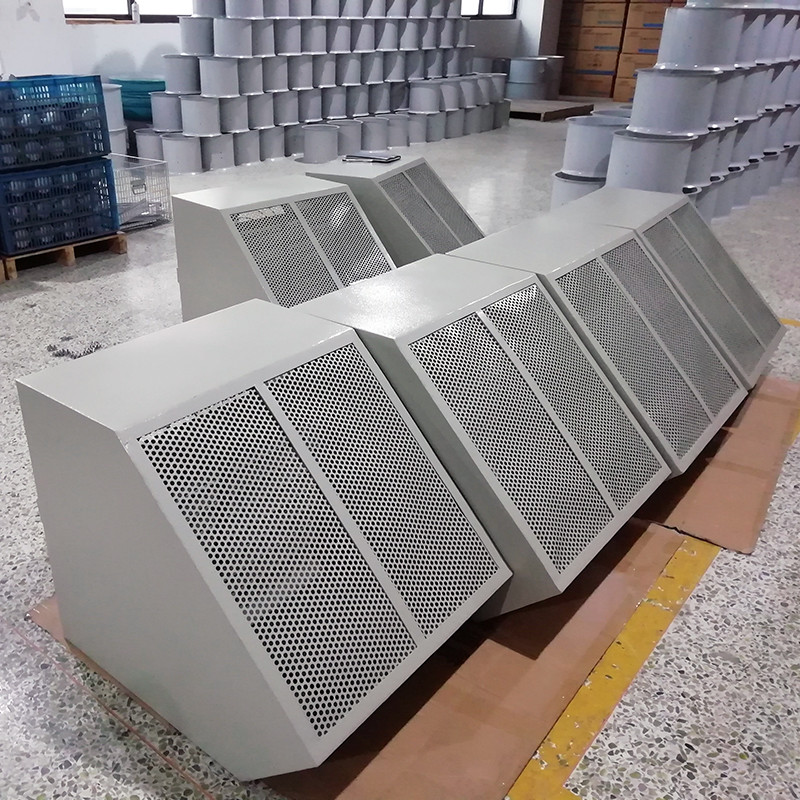

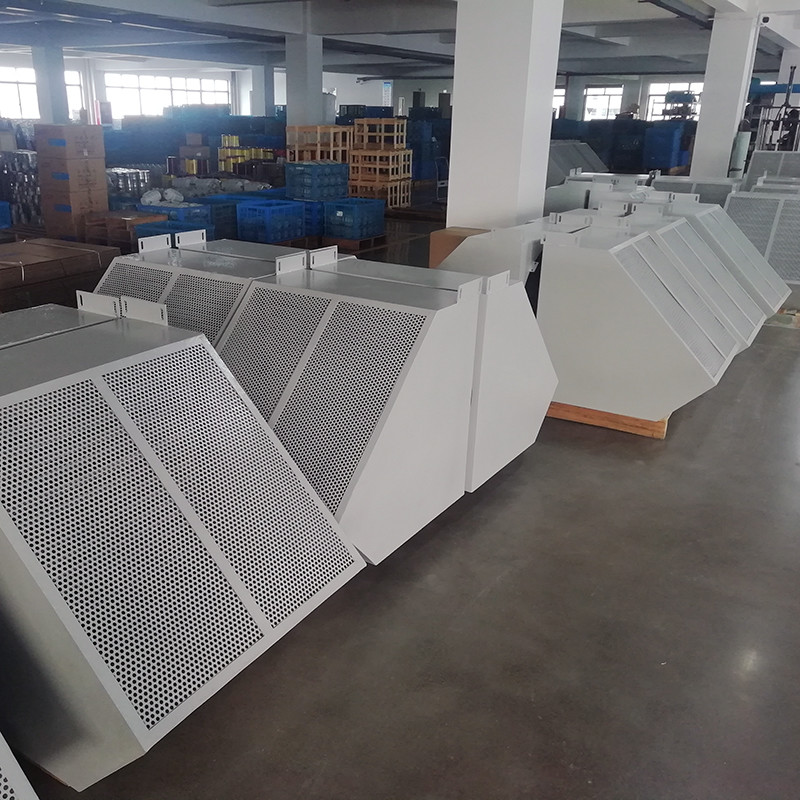

3. Rain covers are available in 45°, 60°, or 90° configurations. Gravity-operated check valves ensure workshop isolation from outdoor air when the fan is off.

4. Installation type: Wall-mounted.

5. Cable or steel pipe wiring.

Machine Number	L1×L2 (mm)	L (mm)	I (mm)	L3 (mm)	L4 (mm)	L5 (mm)
BWEXD-2.8#	420×340	480.5	240	268	390	340×340
BWEXD-3.15#	455×375	505		303	425	375×375
BWEXD-3.55#	495×415	533.5		338	465	415×415
BWEXD-4#	540×460	565		388	510	460×460
BWEXD-4.5#	590×510	600.5		438	560	510×510
BWEXD-5#	640×560	636		488	610	560×560
BWEXD-5.6#	700×620	731	300	558	670	620×620
BWEXD-6.3#	770×690	788		628	740	690×690
BWEXD-7.1#	850×770	844.5		699	820	770×770
BWEXD-8#	940×860	880		798	910	860×860

Machine Number	L1×L2 (mm)	L (mm)	L3 (mm)	L4 (mm)	L5 (mm)
BWEXD-2.8#	420×340	240	268	390	340×340
BWEXD-3.15#	455×375		303	425	375×375
BWEXD-3.55#	495×415		338	465	415×415
BWEXD-4#	540×460		388	510	460×460
BWEXD-4.5#	590×510		438	560	510×510
BWEXD-5#	640×560		488	610	560×560
BWEXD-5.6#	700×620	300	558	670	620×620
BWEXD-6.3#	770×690		628	740	690×690
BWEXD-7.1#	850×770		699	820	770×770
BWEXD-8#	940×860		798	910	860×860

Applicable Scope

1. Suitable for Zone 1 and Zone 2 locations in explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for Zone 21 and Zone 22 locations in explosive dust environments;

4. Suitable for Class IIIA, IIIB, and IIC explosive dust environments;

5. Suitable for temperature classes T1 to T4;

6. Widely used in hazardous environments such as refining, chemical processing, textiles, and military industries, as well as offshore oil platforms and oil tankers;

7. Indoor and outdoor use.
