Technical Parameter
| Serial Number | Product Model | Unit | Parameter Value |
|---|---|---|---|
| 1 | Rated Voltage | V | AC 220V 50Hz |
| 2 | Power | W | 50~200 |
| 3 | Protection Rating | / | IP66 |
| 4 | Corrosion Resistance Rating | / | WF2 |
| 5 | Light Source | / | LED |
| 6 | Luminous Efficacy | lm/w | 110lm/w |
| 7 | Housing Material | / | High quality aluminum |
| 8 | Light Source Parameters | / | Color temperatur:≥50000 Customizable color temperature |
| 9 | Color Rendering Index | / | ≥80 |
| 10 | Service Life | / | 50000hour |
| 11 | Power Factor | / | COSφ≥0.96 |
| 12 | Cable Entry | mm | φ6~8 |
| 13 | Luminaire Color | / | black |
| 14 | Dimensions | mm | See attachment |
| 15 | Mounting Method | / | See installation drawing |
Product Features

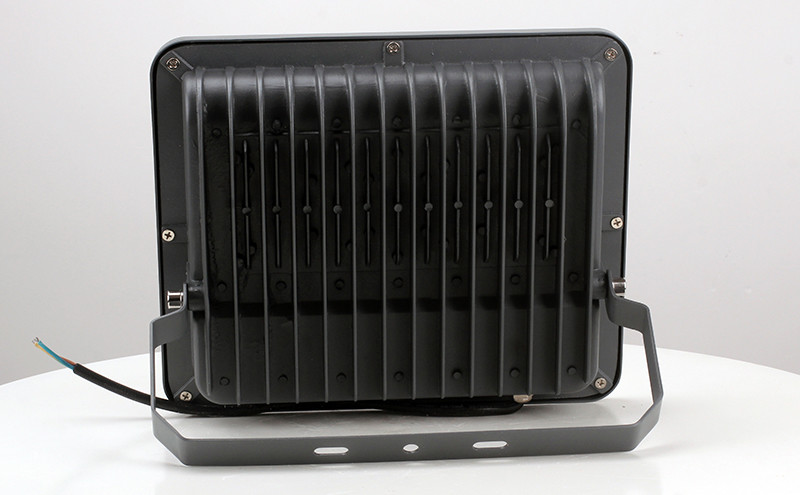

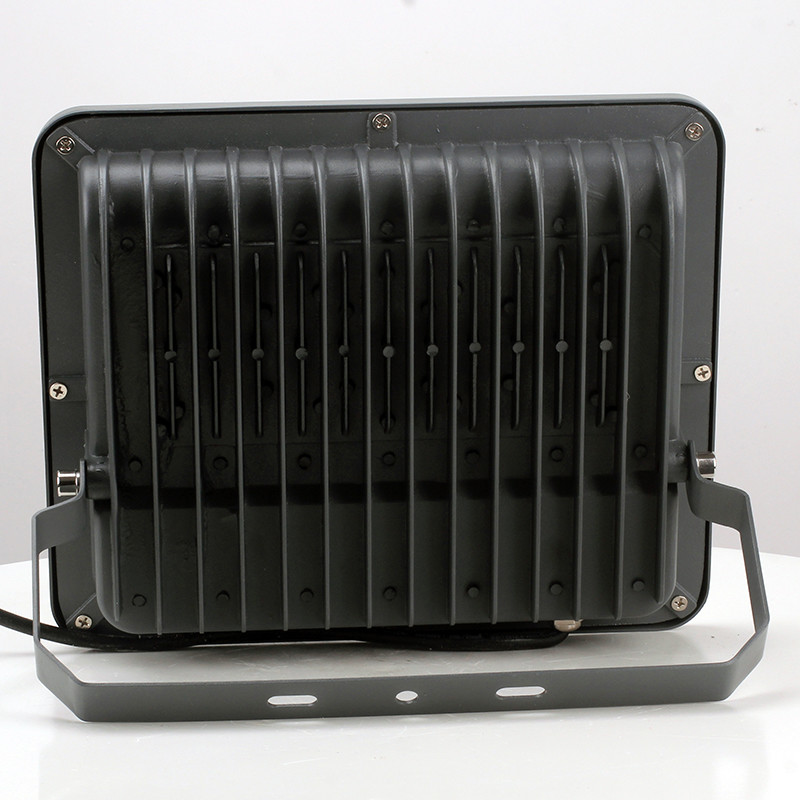

1. Utilizes 1070 pure aluminum stamping technology for superior heat dissipation, lighter weight, and extended light source lifespan;
2. Fin module assemblies can be flexibly combined based on power requirements to meet diverse user needs;
3. Multiple lens designs allow selection of different beam angles for varied application scenarios;
4. Multi-light source configurations accommodate varied requirements while reducing overall costs;
5. Spray-coated housing ensures aesthetic appeal and durability;
6. High protection rating.
Installation Dimensions
Applicable Scope
Application
This product series is suitable for task and ambient lighting in large industrial and mining enterprises, workshops, supermarkets, gymnasiums, warehouses, airports, stations, exhibition halls, cigarette factories, and similar venues.
Scope of Application
1. Applicable altitude: ≤2000 meters;
2. Applicable ambient temperature: -25°C to +50°C;
3. Applicable relative humidity: ≤95% (at 25°C).
