Explosion Proof Fan/

Explosion Proof Axial Flow Fan BAF

Type:Explosion Proof Axial Flow Fan

Color:Grey

Ex Mark:ExebIICT6Gb,Ex db IIBT6 Gb,Ex db IICT6 Gb,Ex tbIIICT80℃ Db

IP Rating:IP66

Model Number:BAF

Warranty(Year):3-Year

Place of Origin:Zhejiang, China

Product Weight(kg):10

  • Product Details
  • About Us
  • FAQ
  • Packing & Delivery

Technical Parameter

explosion proof axial flow fan baf-12

Explosion proof signProtection levelRated frequency (S)Cable outer diameterInlet thread
Ex db IICT4 Gb
Ex tb IIIC T135℃ Db
IP5450φ10-φ14G3/4 or pressure plate

Model and specificationImpeller diameter (mm)Rated voltage (V)Rated speed (r/min)Impeller angleAir volume
(m3 /h)
Total pressure (Pa)Installed power (Kw)
BT35-2#200380/220V280043°12301120.09
1450618640.06
BT35-2.8#280280035°29211900.25
145015101050.18
BT35-3.15#315280030742180.37
145019981410.25
BT35-3.55#355280033672460.37
145021881600.25
BT35-4#40035602600.37
BT35-4.5#45038°3450142
42°46441500.55
BT35-5#55038038°7655116
43°83161230.75
BT35-5.6#5609581173
48°116821861.1
BT35-6.3#63041°10736154
45.2°144541601.5
BT35-7.1#71040°134001781.1
43.5°161601891.5
96046°144981231.1
BT35-8#80044°313251802.2
370732484.0
BT35-9#90046°352272003.0
398002304.0
BT35-10#1000483002475.5
543002687.5
BT35-11.2#112042°56460353
46°6789241511

Product Features

1. This series of ventilators are designed based on the three dimensional flow theory of turbomachinery, and the test data are carefully designed to ensure the excellent aerodynamic performance of the ventilator, featuring low noise, high efficiency, low vibration, low energy consumption, etc;

2. The ventilator is composed of explosion-proof motor, impeller, air duct, protective cover, etc;

3. For ventilation and exhaust, it can also be installed in series in a short exhaust pipe to increase the pressure of the pipe;

4. Default cable wiring. If steel pipe wiring is required, it should be noted when ordering.

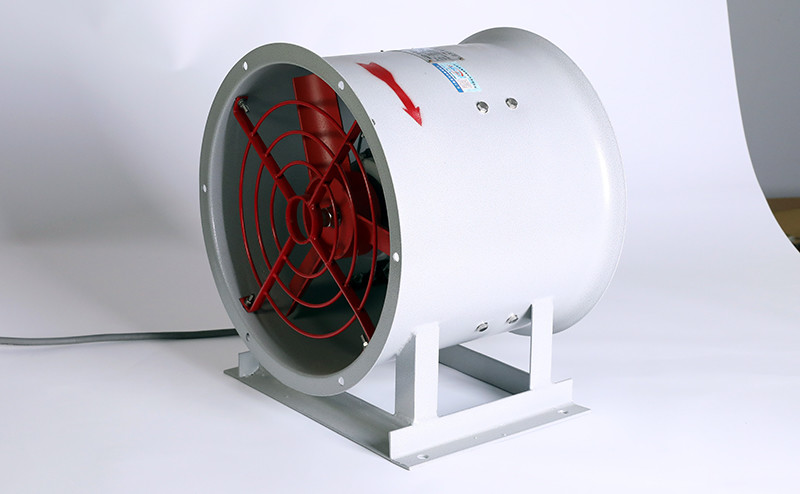

explosion proof axial flow fan baf-14
explosion proof axial flow fan baf-13
explosion proof axial flow fan baf-15
explosion proof axial flow fan baf-16
explosion proof axial flow fan baf-17
explosion proof axial flow fan baf-18
explosion proof axial flow fan baf-19
explosion proof axial flow fan baf-20
explosion proof axial flow fan baf-21
explosion proof axial flow fan baf installation dimensions

Machine NoL(mm)D1(mm)D2(mm)
2#280210260
2.8#290340
3.15#325375
3.55#320365415
4#370410460
4.5#460510
5#510550
5.6#450570620
6.3#640690
7.1#720770
8#630810860
9#910960
10#10101060
11.2#11301180

Applicable Scope

1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;

2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;

3. Suitable for IIA, IIB and IIC explosive gas environment;

4. Applicable to T1-T4 temperature group;

5. It is widely used in oil refining, chemical, textile, gas station and other dangerous environments, offshore oil platforms, oil tankers and other places;

6. Indoor and outdoor.
