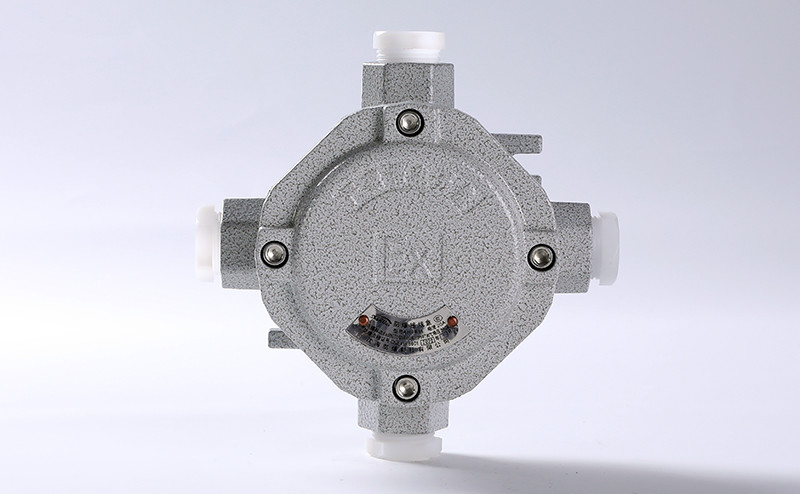

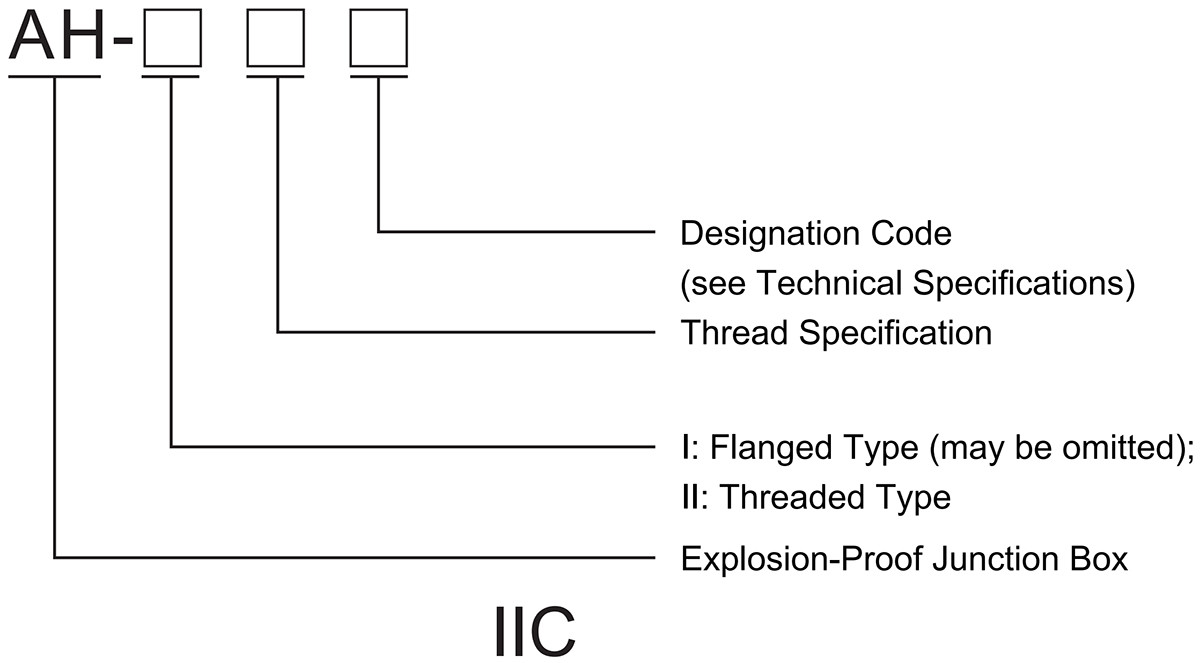

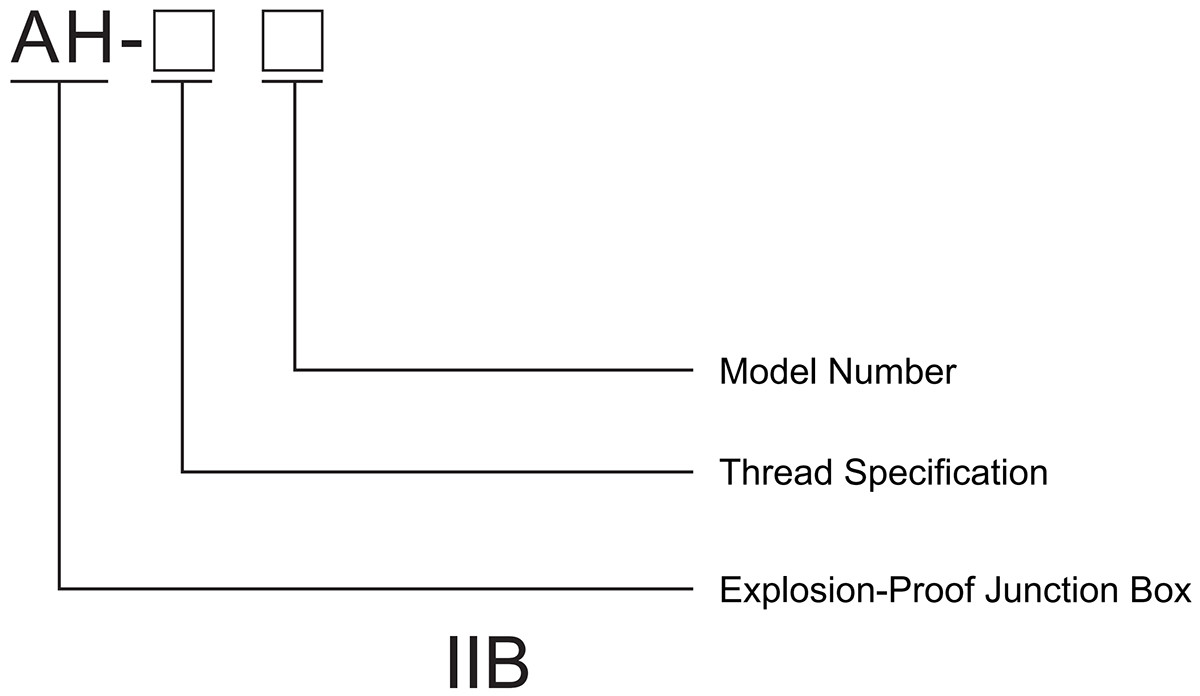

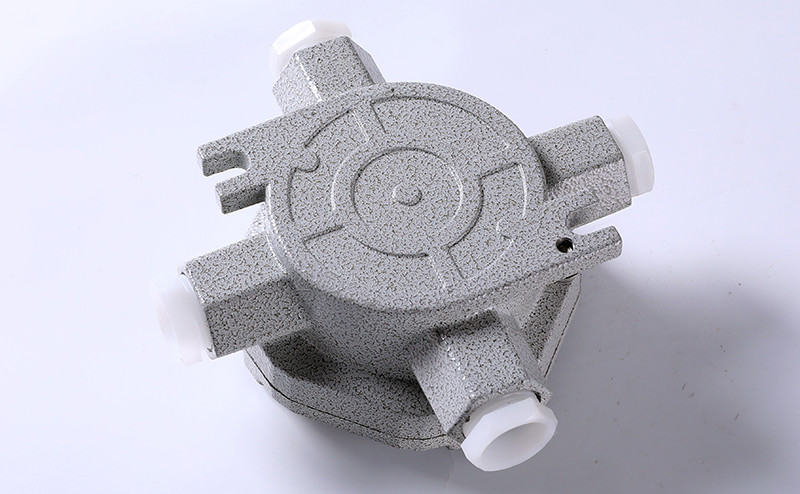

Model Meaning
Implementation Standard
GB/T3836.1、GB/T3836.2、GB/T3836.31、IEC60079-0、IEC60079-1、IEC60079-31
Technical Parameter
IIB
IIC-I
IIC-II

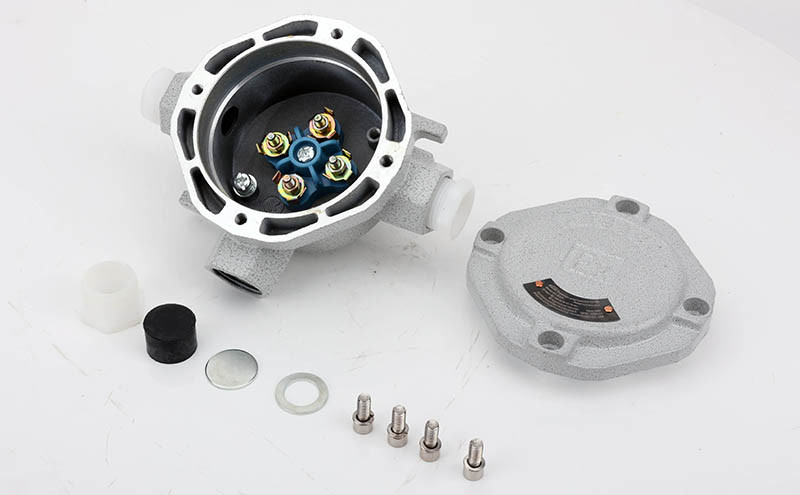

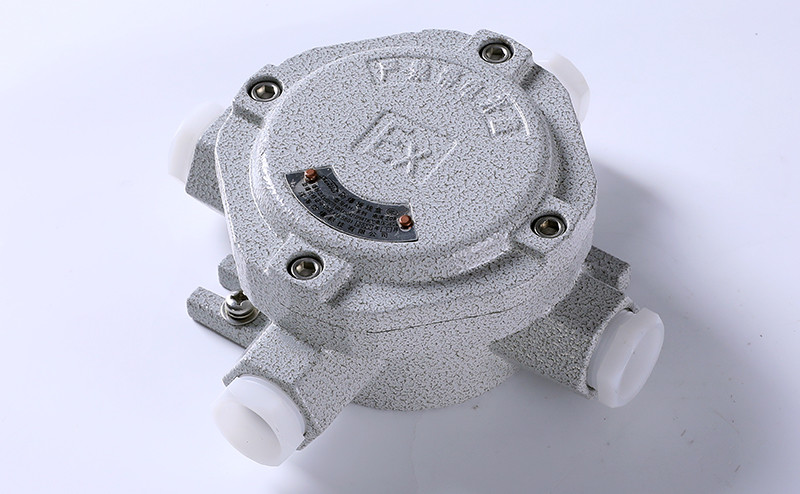

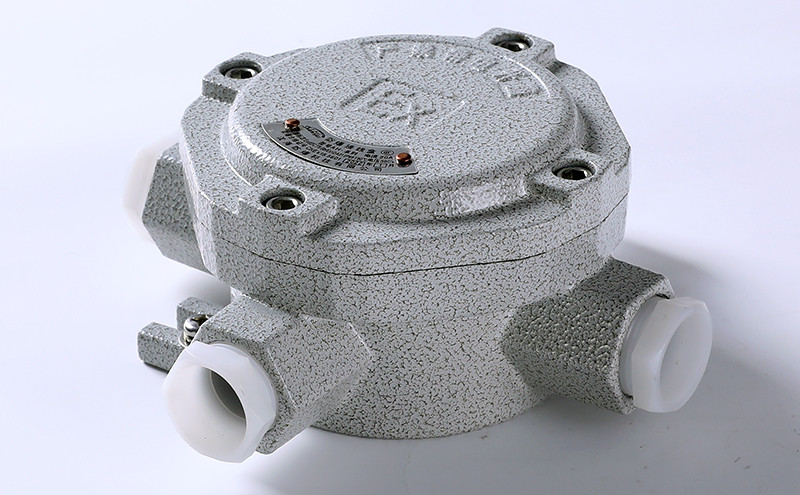

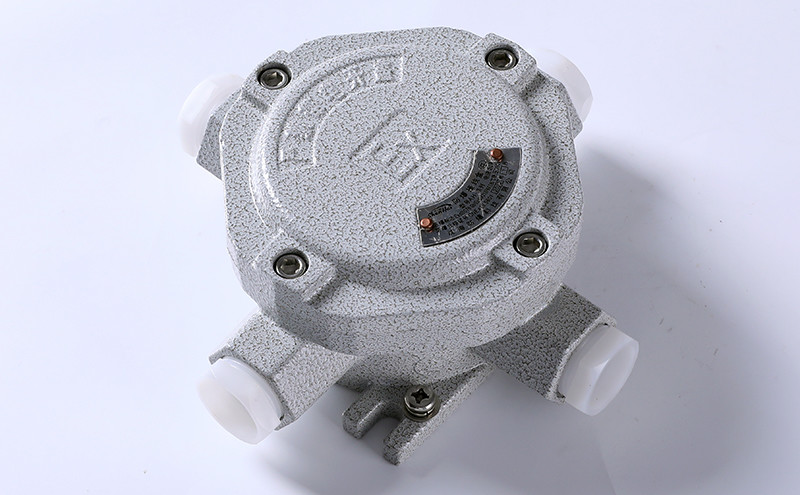

Product Features
1. Aluminum alloy die-cast housing with high-speed shot blasting followed by high-pressure electrostatic powder coating;
2. Stainless steel exposed fasteners for superior corrosion resistance;
3. Multiple configurations and specifications for cable entry/exit ports;
4. Custom threading available for entry/exit ports, including metric threads, NPT threads, etc.;
5. Compatible with both steel conduit and cable wiring.

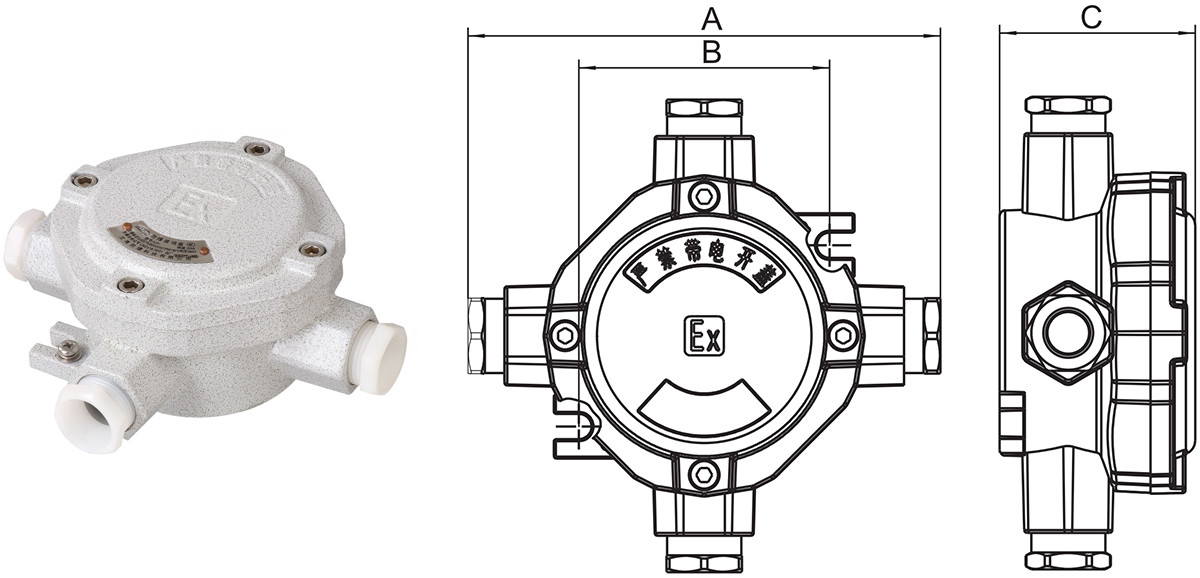

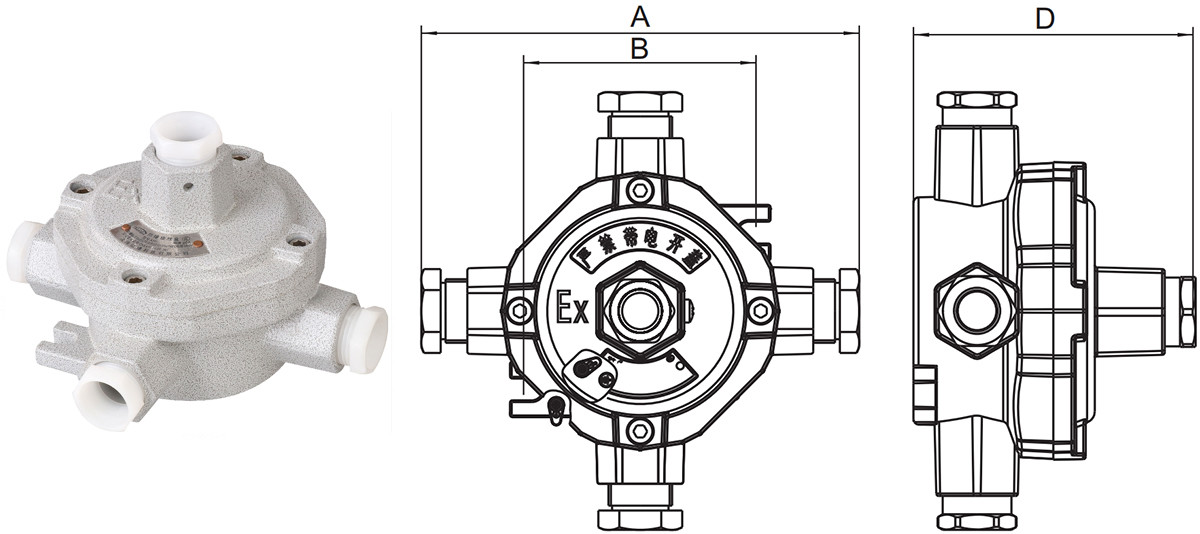

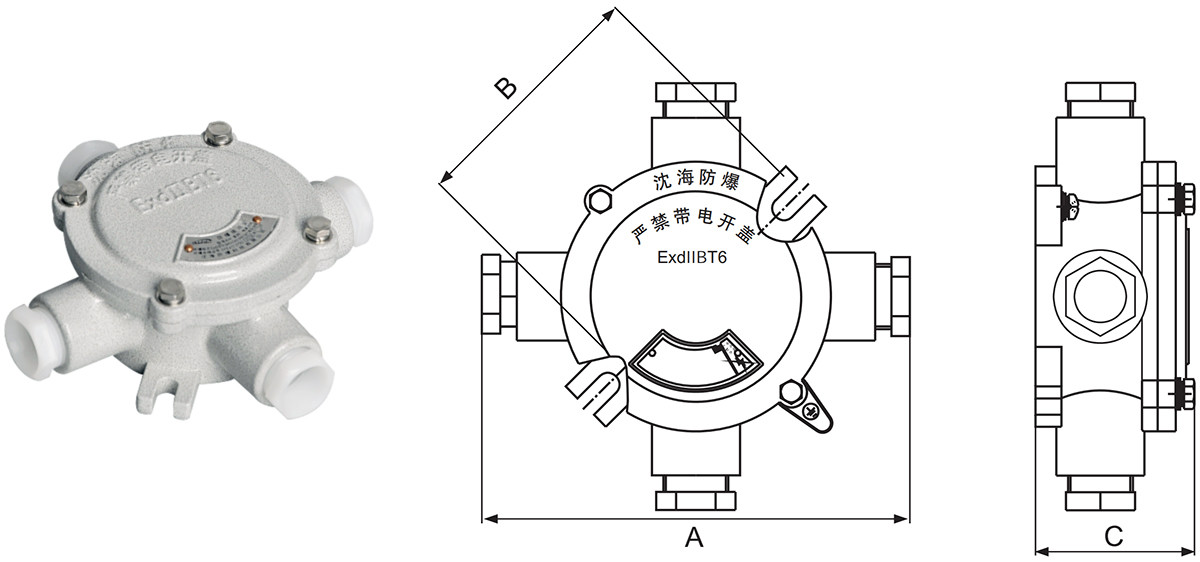

Installation Dimensions

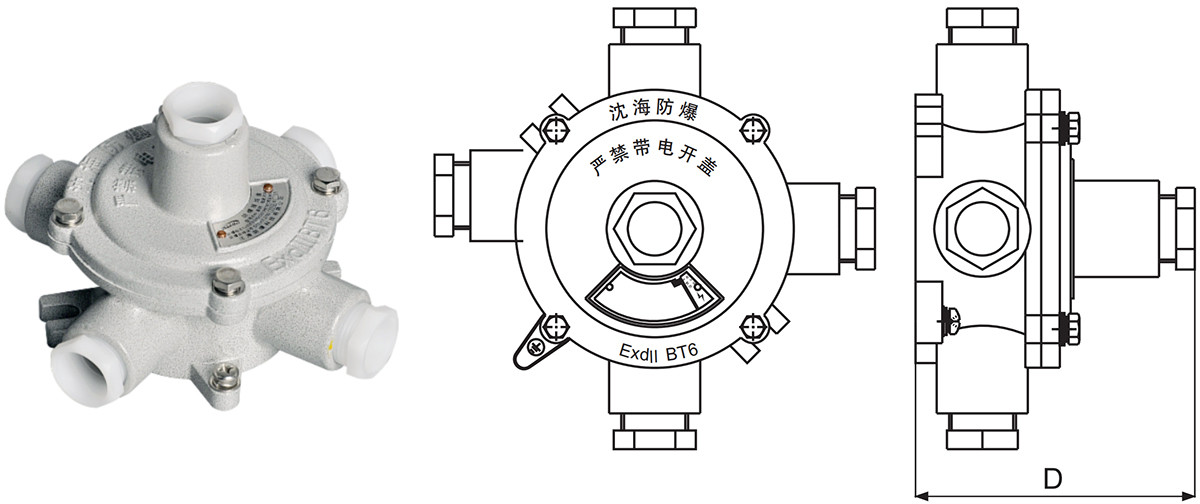

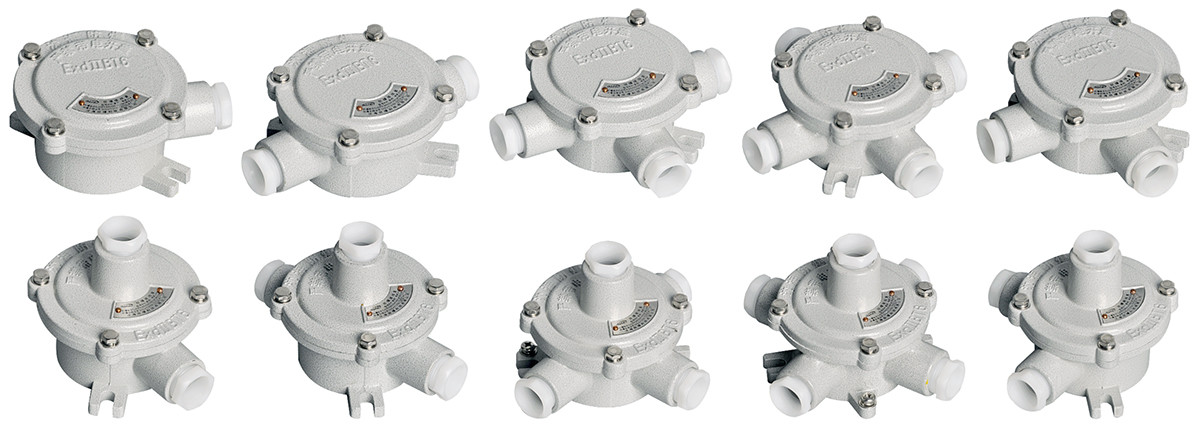

IIB
| Explosion-proof Marking | Protection Rating | Thread Specification | Cable Specification | A | B | C | D |
|---|---|---|---|---|---|---|---|
| Ex db IIB Gb, Ex tb IIIC T80°C Db | IP66 | G1/2" | Φ7mm-Φ10mm | 165 | 95 | 62 | / |
| G3/4" | Φ9mm-Φ14mm | 165 | 95 | 62 | 105 | ||
| G1" | Φ12mm-Φ18mm | 175 | 110 | 67 | 110 | ||
| G1 1/4" | Φ15mm-Φ28mm | 198 | 110 | 85 | / | ||
| G1 1/2" | Φ18mm-Φ30mm | 198 | 110 | 85 | / |

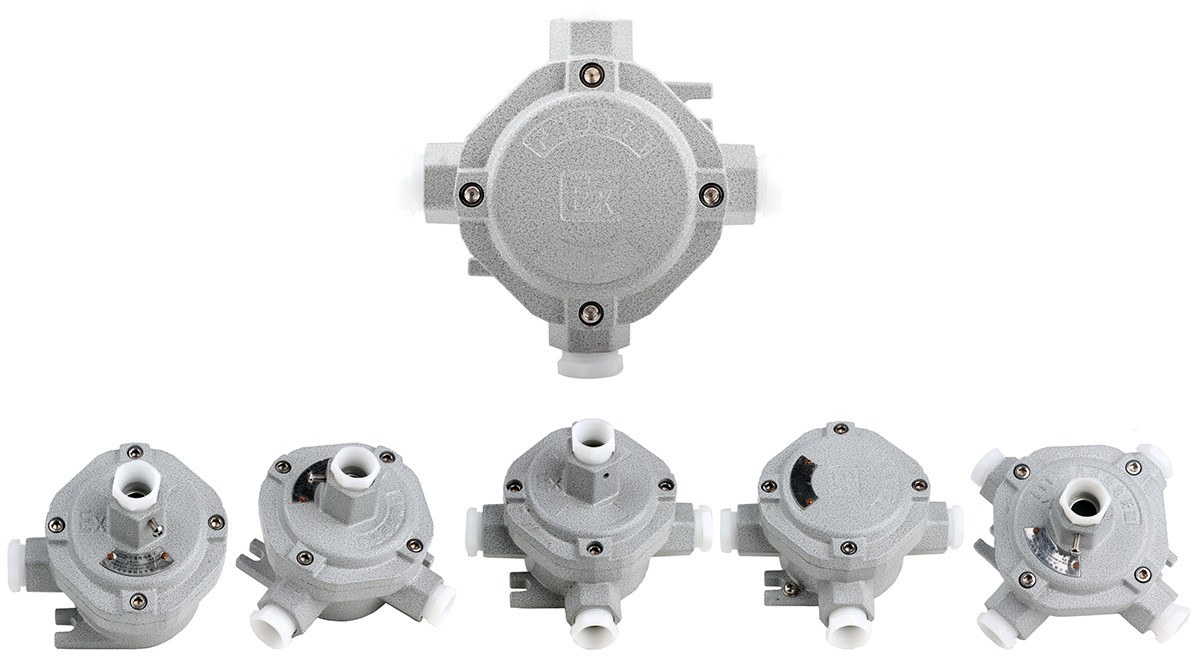

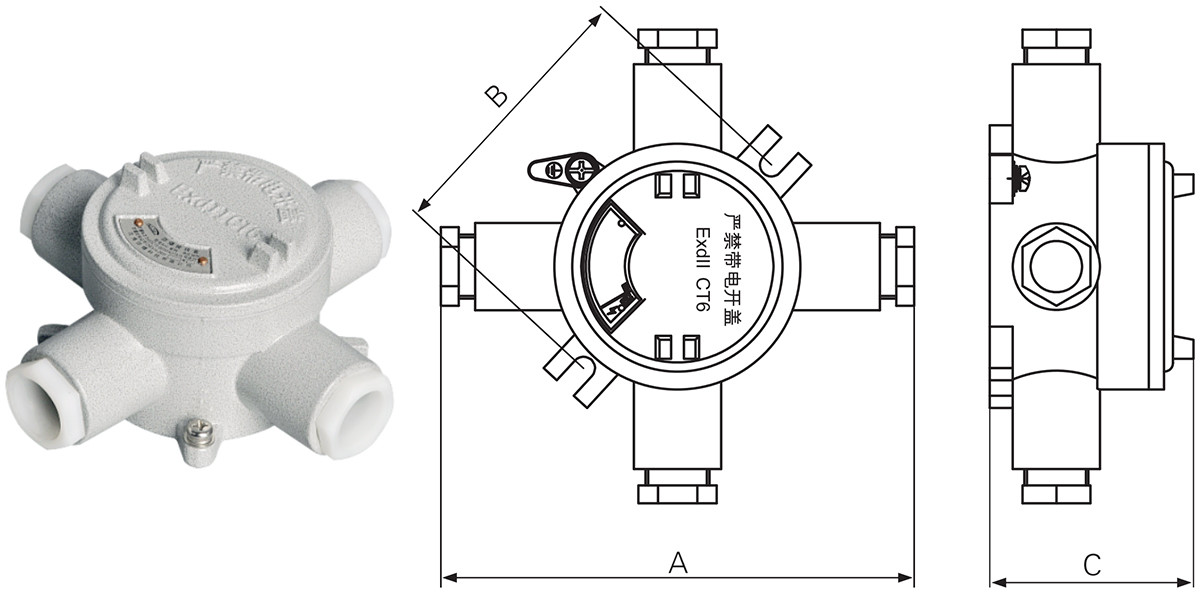

IIC-I

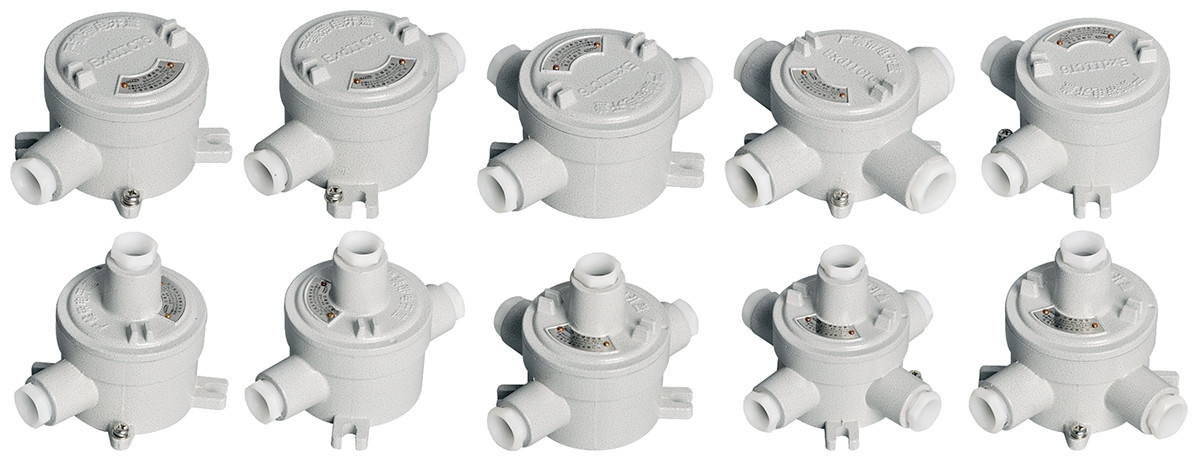

IIC-II

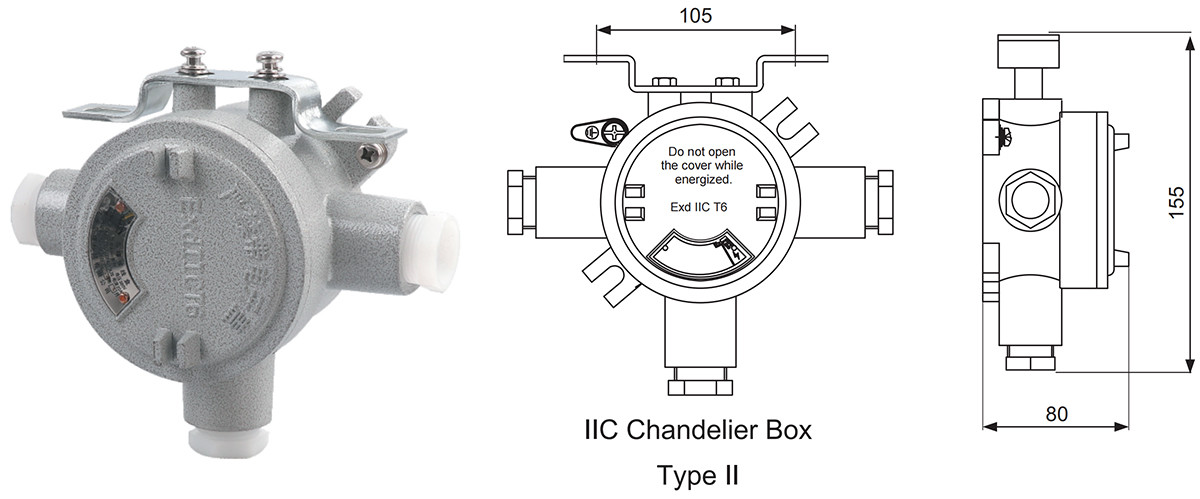

| Explosion-proof Marking | Protection Rating | Thread Specification | Cable Specification | A | B | C | D |
|---|---|---|---|---|---|---|---|
| Ex db IIC Gb, Ex tb IIIC T80°C Db | IP66 | G1/2" | Φ7mm-Φ10mm | 170 | 105 | 82 | / |
| G3/4" | Φ9mm-Φ14mm | 170 | 105 | 82 | 125 | ||
| G1" | Φ12mm-Φ18mm | 185 | 105 | 82 | / | ||
| G1 1/4" | Φ15mm-Φ25mm | 200 | 116 | 87 | / | ||
| G1 1/2" | Φ18mm-Φ28mm | 215 | 116 | 87 | / | ||
| G2" | Φ25mm-Φ38mm | 260 | 260 | 110 | / |

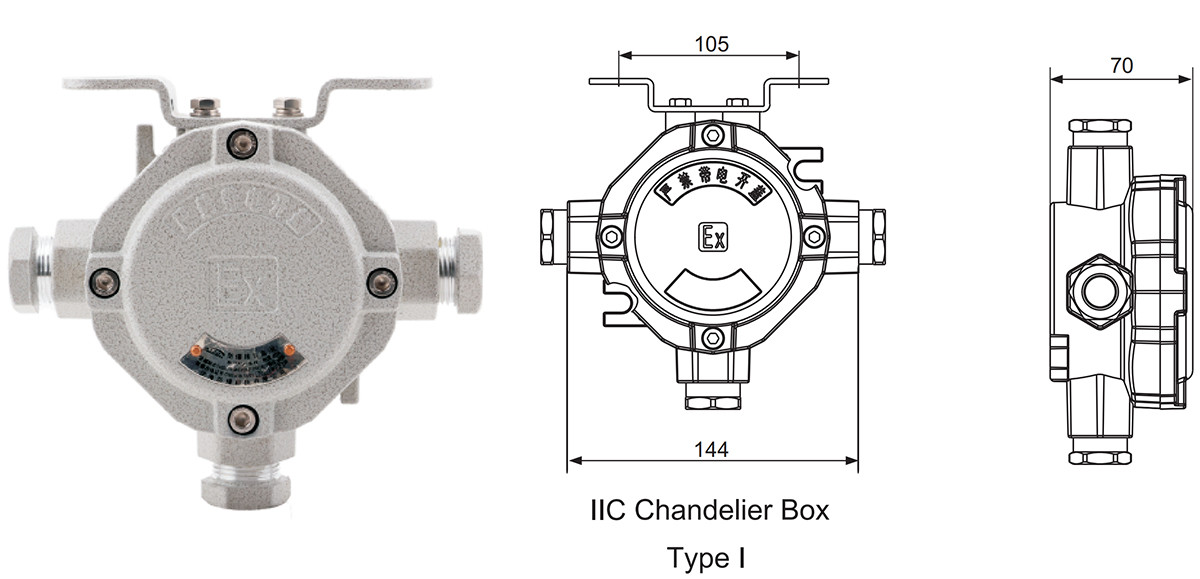

Ceiling Box
Applicable Scope
1. Suitable for Zone 1 and Zone 2 locations in explosive gas environments;
2. Suitable for Class IIA, IIB, and IIC explosive gas environments;
3. Suitable for Zone 21 and Zone 22 locations in explosive dust environments;
4. Suitable for Class IIIA, IIIB, and IIC explosive dust environments;
5. Suitable for temperature classes T1 to T6;
6. Suitable for use as wire and cable connectors in hazardous environments such as petroleum extraction, refining, chemical processing, military manufacturing, offshore oil platforms, oil tankers, and metal fabrication.
