Shenhai Explosion-Proof
Technical Parameter
| Serial Number | Product Model | Unit |
|---|---|---|
| 1 | Rated Voltage | AC 220V |
| 2 | Rated Power | 30~360W |
| 3 | Ambient Temperature | -30°C~50°C |
| 4 | Protection Rating | IP66 |
| 5 | Corrosion Resistance Rating | WF2 |
| 6 | Mounting Method | See attached figure |
| 7 | Compliance Standards | GB7000.1 GB7000.1 IEC60598.1 IEC60598.2 |
Product Features
1. Aluminum alloy die-cast housing with high-pressure electrostatic spray coating for corrosion resistance and anti-aging properties;
2. Computer-simulated light distribution design using optical-grade lens material with high light transmittance;

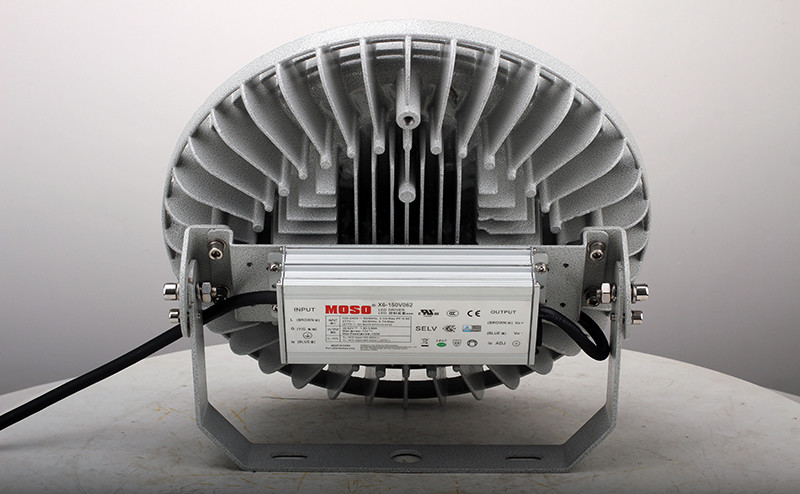

3. Fully sealed external rubber power supply with wide voltage input and robust protection. Natural air cooling ensures timely and effective heat dissipation for long-term operation;
4. Stainless steel exposed fasteners for superior corrosion resistance;
5. New energy-efficient and eco-friendly LED light source with minimal lumen depreciation and a lifespan exceeding 100,000 hours;
6. Dedicated constant-current power supply with low power consumption and stable output power, featuring open-circuit, short-circuit, and overheat protection, achieving a power factor above 0.9;
7. Streamlined industrial luminaire design with mounting bracket and angle adjustment mechanism for adjustable light direction and easy installation.
Installation Dimensions
Applicable Scope
Applications
This product series is suitable for lighting in power plants, steel mills, petrochemical plants, ships, stadiums, parking lots, basements, and similar locations.
Specifications
1. Voltage fluctuation tolerance range: AC135V to AC220V;
2. Ambient temperature: -25°C to 40°C;
3. Installation altitude not exceeding 2000 meters above sea level;
4. Ambient relative humidity not exceeding 96% (+25°C);
5. Locations free from significant vibration or shock;
6. Environments free from acid, alkali, salt, ammonia, chloride ion corrosion, water, dust, or moisture.
