Model Meaning
Implementation Standard
GB/T3836.1、GB/T3836.2、GB/T3836.3、GB/T3836.31、IEC60079-0、IEC 60079-1、IEC 60079-7、IEC 60079-31
Technical Parameter
| Model Specifications | Rated Voltage (V) | Rated Current (A) | Explosion-Proof Marking | Protection Rating | Corrosion Resistance Rating | Cable Entry Thread | Cable Outer Diameter |
|---|---|---|---|---|---|---|---|
| BDZ52 | AC 690V,660V,440V,400V,380V, 230V,220V,110V,48V,36V,24V,12V DC 220V,110V,48V,36V,24V,12V | In≤16 | Ex db eb IIB T6 Gb, Ex tb IIC T80℃ Db | IP66 | WF1 WF2* | G3/4"~G4" | Φ10~Φ80mm |
| 63＜In≤100 | Ex db eb IIB T5 Gb, Ex tb IIC T80℃ Db |
||||||
| 100＜In≤630 | Ex db eb IIB T4 Gb, Ex tb IIC T80℃ Db |
||||||
| BDZ53 | In≤16 | Ex db eb IIB T6 Gb, Ex tb IIC T80℃ Db |
|||||
| 63＜In≤100 | Ex db eb IIB T5 Gb, Ex tb IIC T80℃ Db |
||||||
| 100＜In≤630 | Ex db eb IIB T4 Gb, Ex tb IIC T80℃ Db |
Selection Table
| Model Specifications | Rated Current (A) | Inlet Thread | Cable Outer Diameter |
|---|---|---|---|
| BDZ52 BDZ53 | In≤16 | G3/4" | φ10~φ14mm |
| 16＜In≤32 | G1" | φ12~φ17mm | |
| 32＜In≤40 | G1 1/4" | φ15~φ23mm | |
| 40＜In≤63 | G1 1/2" | φ18~φ33mm | |
| 63＜In≤160 | G2" | φ26~φ43mm | |
| 160＜In≤200 | G2 1/2" | φ30~φ50mm | |
| 200＜In≤315 | G3" | φ38~φ57mm | |
| 315＜In≤630 | G4" | φ48~φ80mm |

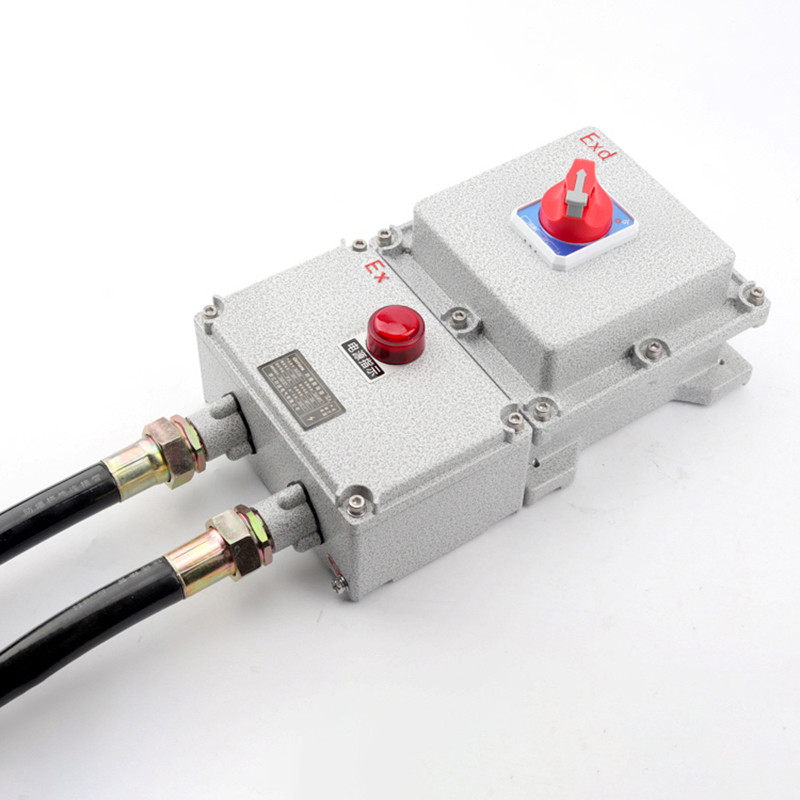

Product Features
1. Aluminum alloy die-cast housing undergoes high-speed shot blasting followed by high-pressure electrostatic powder coating for corrosion resistance and aging resistance;
2. Stainless steel exposed fasteners provide superior corrosion resistance;

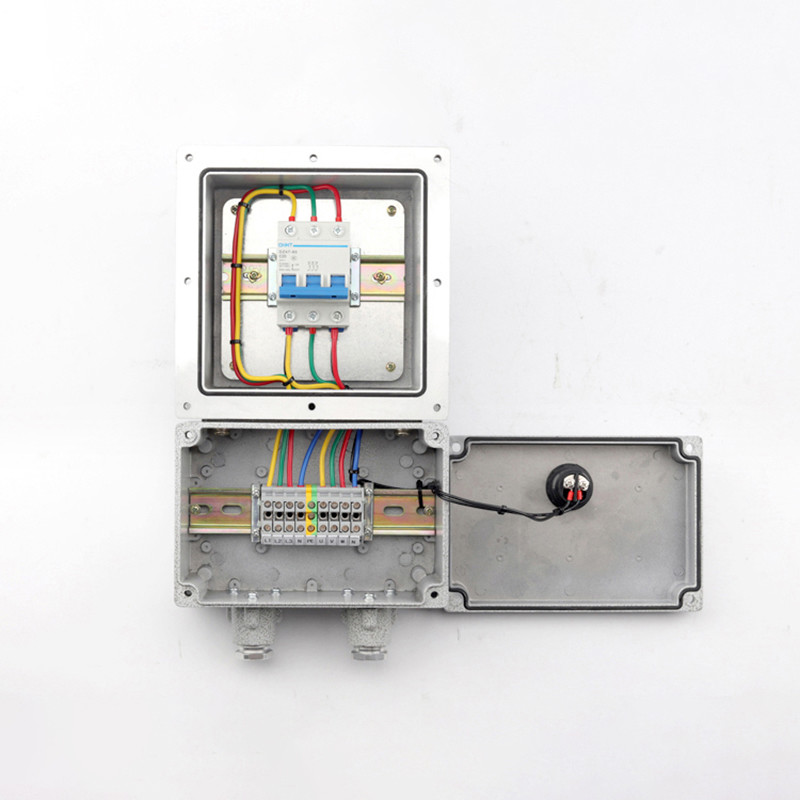

3. This series features a composite structure: the main chamber employs explosion-proof construction (IIB type with flat-face explosion-proof, IIC type with flanged explosion-proof), while the wiring chamber uses increased safety construction;
4. Equipped with high-breaking capacity miniature circuit breakers or molded case circuit breakers. The cover features a PC operating handle with a patented new mechanism, offering a simple, rational design, high versatility, and convenient operation;
5. Sealing strips utilize advanced one-step wire-pour foaming molding technology for superior protection;
6. Compatible with both steel pipe and cable wiring.

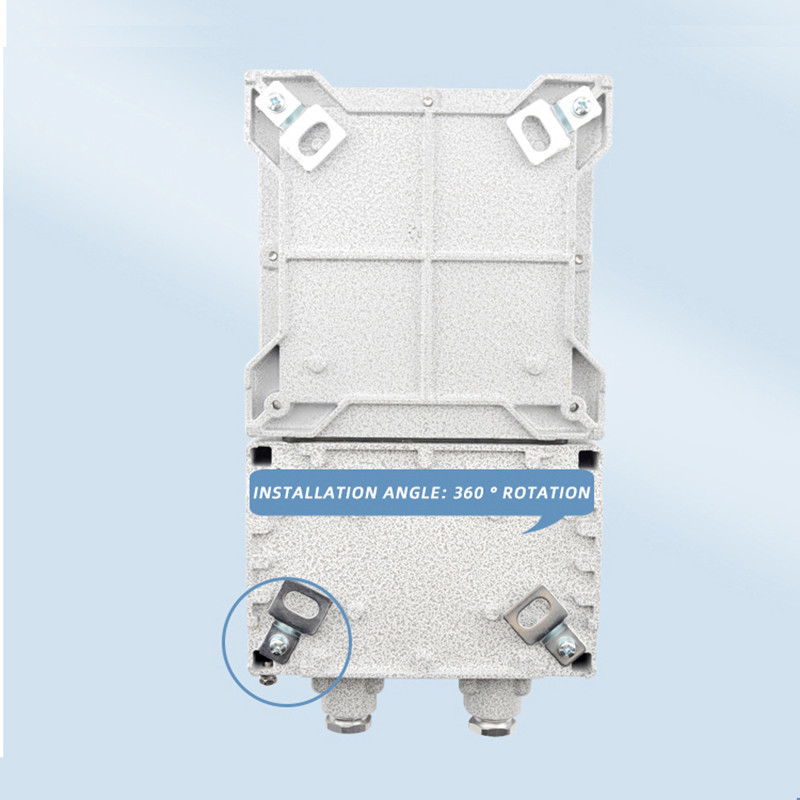

BDZ52 Installation Dimensions
BDZ53 Installation Dimensions
Applicable Scope
1. Suitable for Zone 1 and Zone 2 locations in explosive gas environments;
2. Suitable for Class IIA, IIB, and IIC explosive gas environments;
3. Suitable for Zone 21 and Zone 22 locations in explosive dust environments;
4. Suitable for Class IIIA, IIIB, and IIC explosive dust environments;
5. Suitable for temperature classes T1 to T6;
6. Suitable for hazardous environments in petroleum extraction, refining, chemical processing, military applications, offshore oil platforms, tankers, defense industries, metal processing, and similar settings.
