ExplosionProofFlashlightRJW7101|ProductCenter

Explosion Proof Light/Explosion Proof Flashlight/

Explosion Proof Flashlight RJW7101

Type:Explosion Proof Flashlight

Color:Grey

Ex Mark:Ex db IIC T6 Gb; Ex tb IIIC T80℃ Db

IP Rating:IP66

Model Number:RJW7101

Light Power(W): 9W

Emitting Color: Warm White / Cold White

Warranty(Year):3-Year

Place of Origin:Zhejiang, China

Input Voltage(V):220V 380V

Product Weight(kg):0.92

Color Temperature(CCT):2700-6500k

Working Temperature(℃):-20~40

Color Rendering Index(Ra):80

Light Luminous Efficiency(lm/w):120

  • Product Details
  • About Us
  • FAQ
  • Packing & Delivery

Technical Parameter

explosion proof flashlight rjw7101-7

BatteryLED light source
Rated voltageRated capacityBattery lifeRated powerAverage service lifeContinuous working time
Strong lightWorking light
14.8V2.2AhAbout 1000 times3*3100000≥8h≥16h

Charging timeOverall dimensionsProduct weightExplosion proof signDegree of protection
≥8hΦ69x183mm925ExdIICT6GbIP68(100rice 1h)

Product Features

1. The product is designed in full accordance with and requirements, and the explosion-proof type is of high explosion-proof level. It is manufactured in full accordance with national explosion-proof standards, and can work safely in various flammable and explosive places.

2. The reflector adopts high-tech surface treatment process, with high reflective efficiency. The illumination distance of the light can reach more than 1200 meters, and the visual distance can reach 1000 meters.

3. High energy memoryless lithium battery with large capacitance, long service life, low self discharge rate, economic and environmental protection; LED bulb has high luminous efficiency.

4The continuous working time can reach 8/10 hours, which can not only meet the needs of duty, but also be used as emergency lighting for power failure; Charging time only takes hours; Fully charged once, it can be used at any time within 3 months.

5. mported high hardness alloy shell can withstand strong collision and impact; It has good waterproof, high temperature resistance and high humidity performance, and can work normally under various adverse weather conditions

6. The flashlight is equipped with over discharge, over charge and short circuit protection devices to effectively protect the battery and prolong the service life of the flashlight; The intelligent charger is equipped with short circuit protection and charging display device.

explosion proof flashlight rjw7101-8

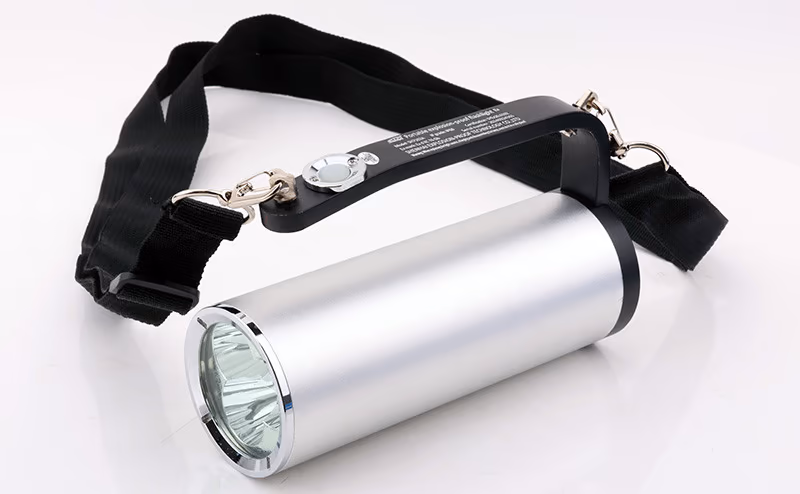

explosion proof flashlight rjw7101-9

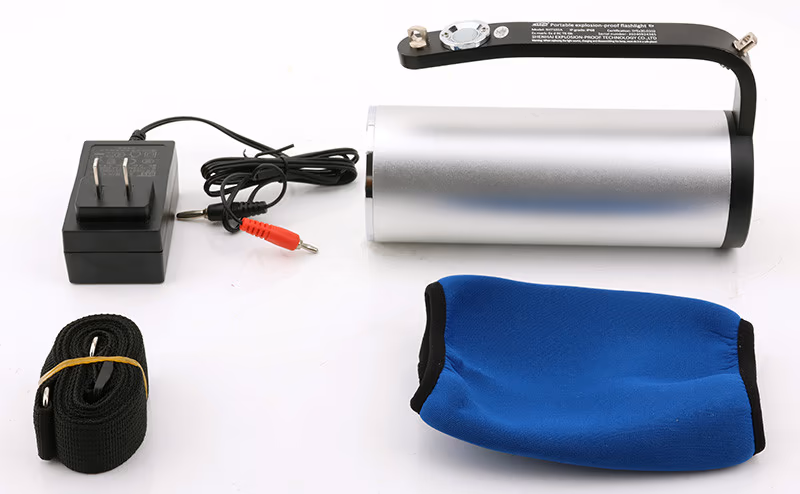

explosion proof flashlight rjw7101-10

Applicable Scope

The mobile lighting needs of industrial and mining enterprises such as oil fields, mines, petrochemicals and railways. It is applicable to all kinds of emergency rescue, fixed-point search, emergency handling and other work.

company profile-2 sample room our certificateexhibition

Q: Are you factory or trading company?
A: We are a factory and provide OEM services. Our main products are explosion-proof lightings, explosion-proof distribution box, explosion-proof cable gland, explosion-proof fans, explosion-proof junction box and anti-corrosion & dustproof & waterproof lights.

Q: What certificates do you have?
A: We have passed ATEX, IECEx, and with a lot of National Patents.

Q: What place are your products used in?
A: They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal, gas station and other industries.

Q: Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q: Can youaccept customized?
A: Yes. Please inform us and confirm the design firstly based on our sample.

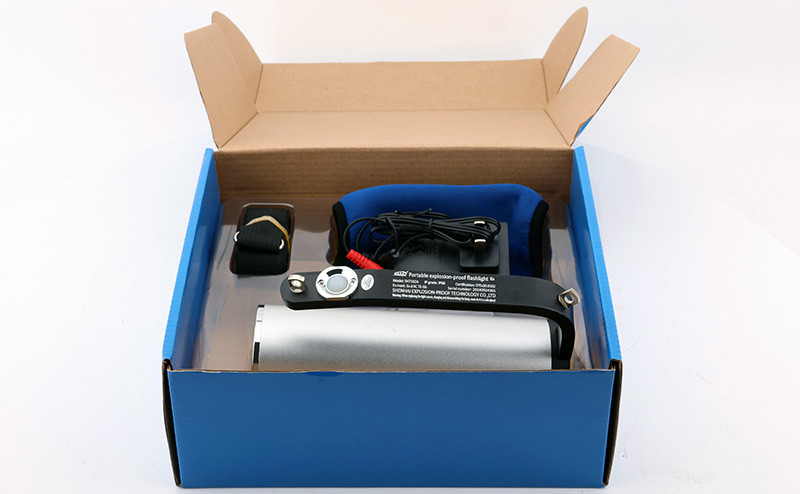

packing delivery
