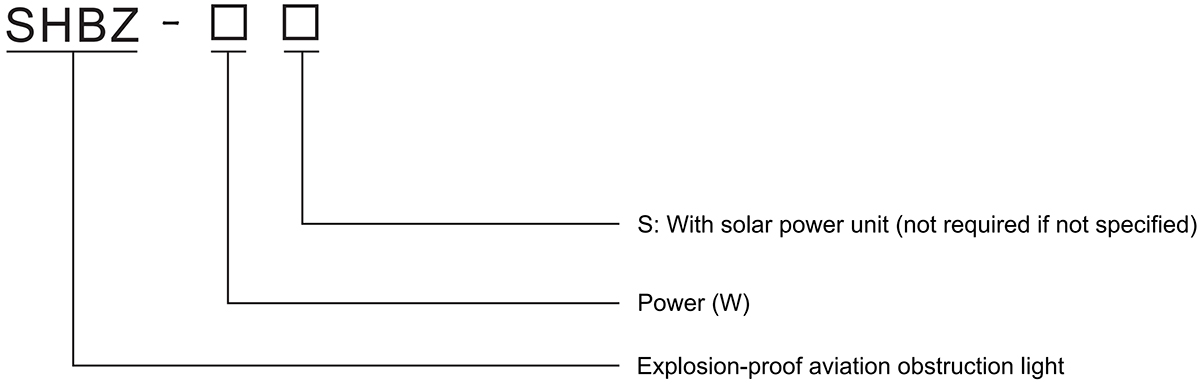

Model Meaning
Implementation Standard
GB/T3836.1、GB/T3836.2、GB/T3836.31、IEC60079-0、IEC60079-1、IEC60079-31
Technical Parameter
1. LED light source with unidirectional light emission, no lateral light leakage, and high light utilization efficiency;
2. Excellent energy-saving performance, high luminous efficacy, and environmentally friendly;
3. Wide voltage input range with constant luminous flux output and extended service life;
4. Constant-current power supply featuring low power consumption and stable output power, equipped with open-circuit, short-circuit, and overheat protection to ensure reliable operation of the LED light source.
| Model and Specifications | Explosion-Proof Marking | Rated Voltage | Light Source | Power (W) | Flicker Frequency (times/min) | Average Lifespan (h) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| SHBZ | Ex db IIC T6 Gb, Ex tb IIIC T80°C Db | AC 220V | LED | Low Light Intensity: 8 Medium Light Intensity: 10, 20, 30, 40 | 16~120 | 50000 | 3.04 |
| AC 220V, 36V, 24V DC 36V, 24V | Hernia | ≤50 | 10~120 | 42 |
| Inlet Thread | Cable Outer Diameter | Protection Rating | Corrosion Resistance Rating |
|---|---|---|---|
| G3/4" | Φ10~Φ14mm | IP66 | WF1, WF2* |
Product Features
1. Die-cast aluminum alloy housing with high-pressure electrostatic coating for corrosion and aging resistance;
2. Transparent components made from imported engineering resin with UV resistance and anti-glare treatment, providing soft lighting to effectively prevent discomfort and fatigue caused by light exposure;
3. Stainless steel exposed fasteners with high corrosion resistance;
4. All removable external components feature anti-disengagement measures;
5. High-temperature silicone rubber gaskets at joints provide IP66 protection for indoor/outdoor use;
6. Dedicated internal terminals ensure reliable wiring connections and facilitate maintenance;
7. New energy-efficient and environmentally friendly LED light source with minimal lumen depreciation and a lifespan of up to 100,000 hours;
8. Custom constant-current power supply with low power consumption and stable output power, featuring open-circuit, short-circuit, and overheat protection, with a high power factor exceeding 0.9;
9. This series of luminaires comes with an integrated cable clamping and sealing device, compatible with both steel pipe and cable wiring.

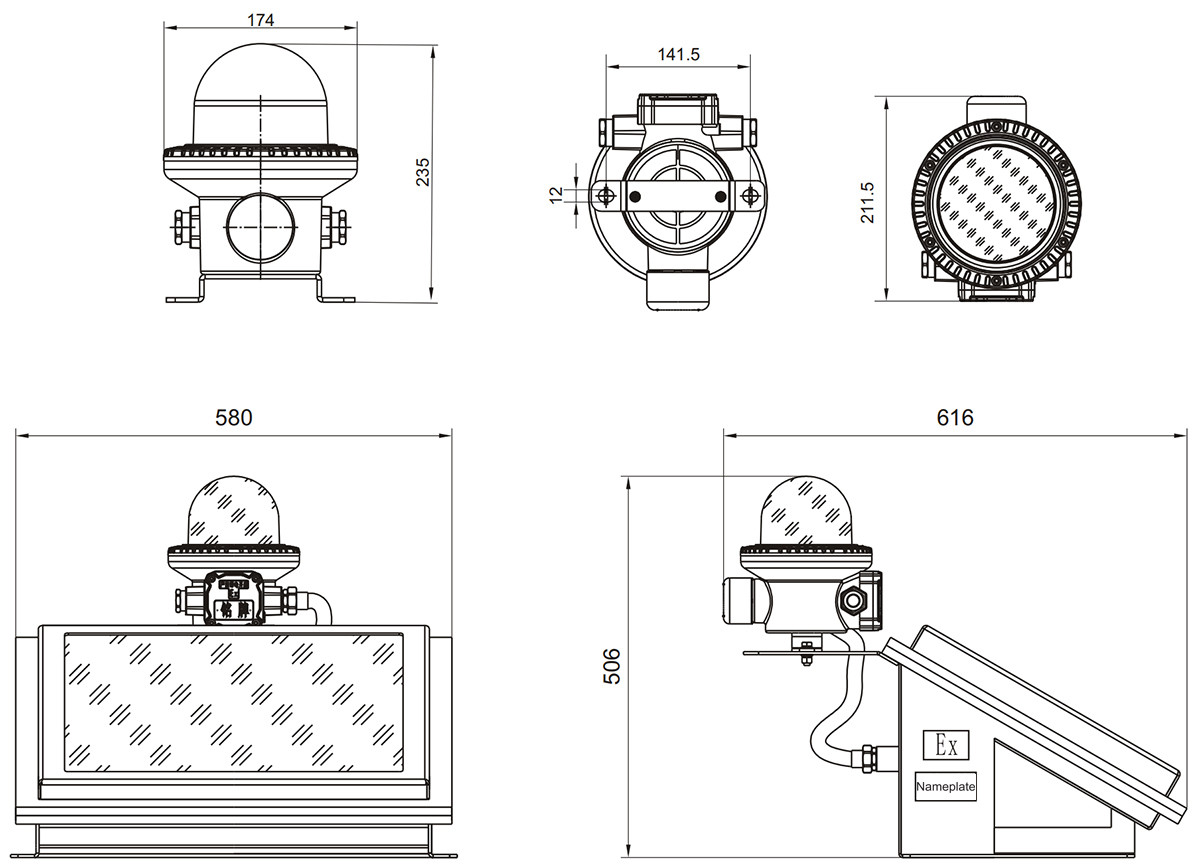

Installation Dimensions
Applicable Scope
1. Suitable for Zone 1 and Zone 2 locations in explosive gas environments;
2. Suitable for Class IIA, IIB, and IIC explosive gas environments;
3. Suitable for Zone 21 and Zone 22 locations in explosive dust environments;
4. Suitable for Class IIIA, IIIB, and IIC explosive dust environments;
5. Suitable for temperature classes T1 to T6;
6. Suitable for energy-saving retrofit projects and locations where maintenance or replacement is difficult;
7. Widely used in petroleum extraction, refining, chemical processing, military manufacturing, textiles, food processing, and on fixed structures such as offshore oil platforms and tankers, as well as mobile objects at airports.
