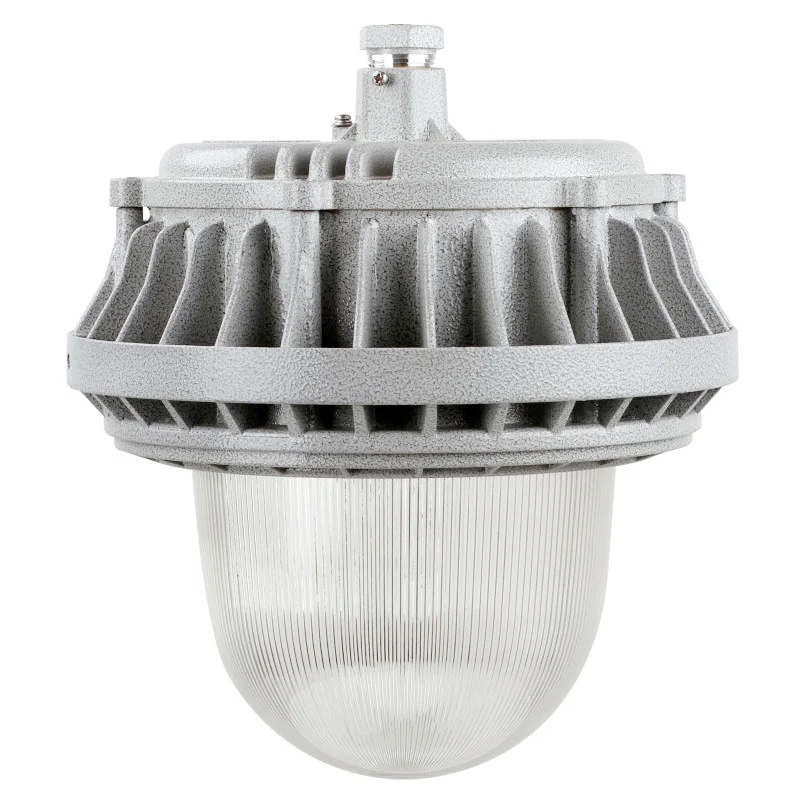

Model Meaning
Implementation Standard
GB/T3836.1、GB/T3836.2、GB/T3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-31
Feature Showcase

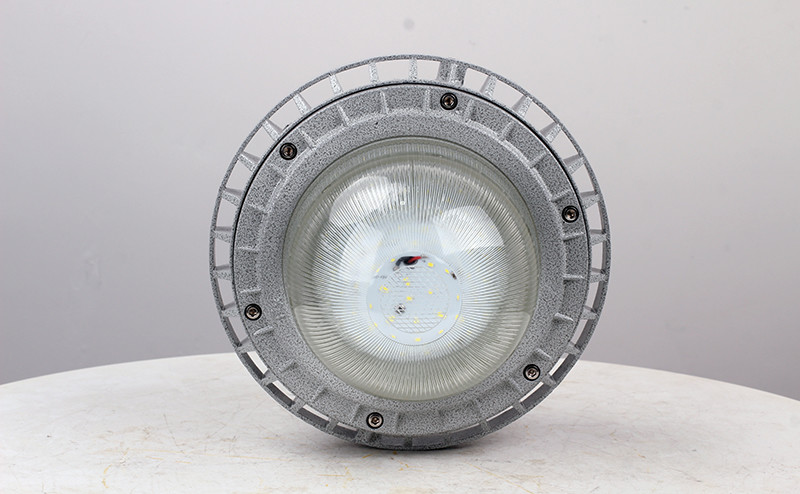

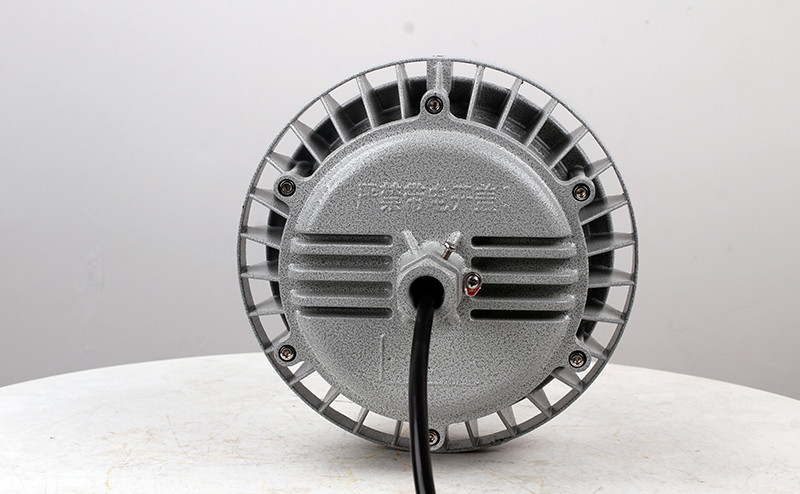

 | Premium brand chips, rationally arranged, unidirectional light emission, uniform and soft illumination, luminous efficacy ≥120lm/W, high color rendering index Ra＞70, extended service life, eco-friendly, color temperature 3000K~5700K. |  | High-strength transparent anti-glare glass cover with excellent impact resistance and thermal shock resistance, featuring high light transmittance. |
 | Natural ventilation convection heat dissipation technology utilizes airflow to dissipate heat through heat dissipation channels and thermal flow pathways to the surface of the luminaire's heat sink. This effectively dissipates heat from the LED light source, ensuring the long-term operational reliability of the LED explosion-proof light. |  | Natural ventilation convection heat dissipation technology utilizes airflow to dissipate heat through heat dissipation channels and thermal flow pathways to the surface of the luminaire's heat sink. This effectively dissipates heat from the LED light source, ensuring the long-term operational reliability of the LED explosion-proof light. |
Technical Parameter
| Model and Specifications | Luminaire Type | Light Source | Power (W) | Luminous Flux (lm) | Color Temperature (K) | Explosion-Proof Marking | Weight (kg) |
| BED60 | I | LED | 10~30 | 1200~3600 | 3000~5700 | Ex db IIC T6 Gb,
Ex tb IIIC T80°C Db | 1.9 |
| II | 40~60 | 4800~7200 | 3.68 |
| III | 70~100 | 8400~12000 | 5.24 |
| IV | 120~150 | 14400~18000 | Ex db IIC T5 Gb,
Ex tb IIIC T95°C Db | 6.96 |
| Rated Voltage/Frequency | Protection Rating | Corrosion Resistance Rating | Inlet Thread | Cable Outer Diameter |
AC 220V
DC 36V, 24V | IP66 | WF1
WF2* | G3/4" | Φ10~Φ14mm |
Emergency Parameters
| Emergency Response Time (s) | Charging Time (h) | Emergency Power (W) | Light Source Power (W) | Emergency Lighting Duration (minutes) |
| ≤0.3 | 24 | 5~20 | 10~30 | ≥60min、≥90min Optional |
| 10~50 | 40~150 |
Light Distribution Curve

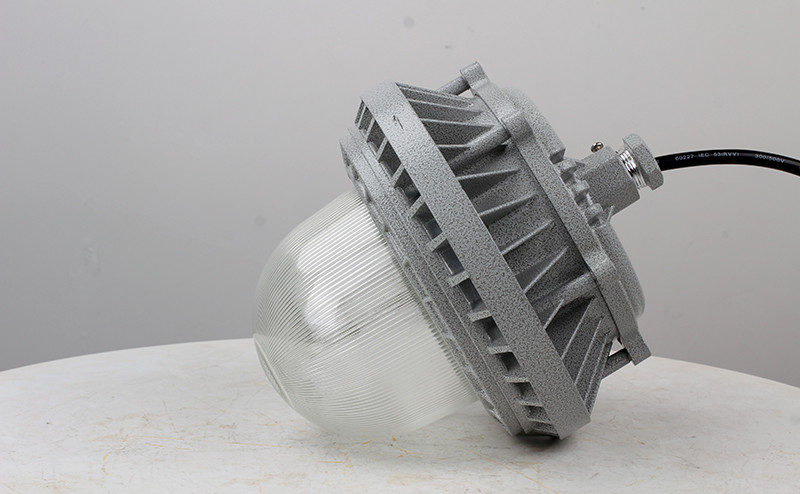

Product Features
1. Radiator designed with special die-cast aluminum alloy, featuring high-pressure electrostatic powder coating;
2. Exposed stainless steel fasteners with high corrosion resistance;
3. Flanged explosion-proof joint surface, pure explosion-proof structure for enhanced reliability;
4. Multi-point light emission with high luminous efficiency, delivering uniform illumination without glare;
5. Constant-current power supply with wide voltage input and constant-current output, featuring protection against shunt current, surge, overcurrent, open circuit, short circuit, high temperature, and electromagnetic interference;
6. Microwave-sensing dimming system for energy efficiency and environmental protection;
7. Power factor cosφ ≥ 0.95;
8. Compatible with modular emergency kits for automatic switchover to emergency lighting during power outages;
9. Suitable for conduit or cable wiring.

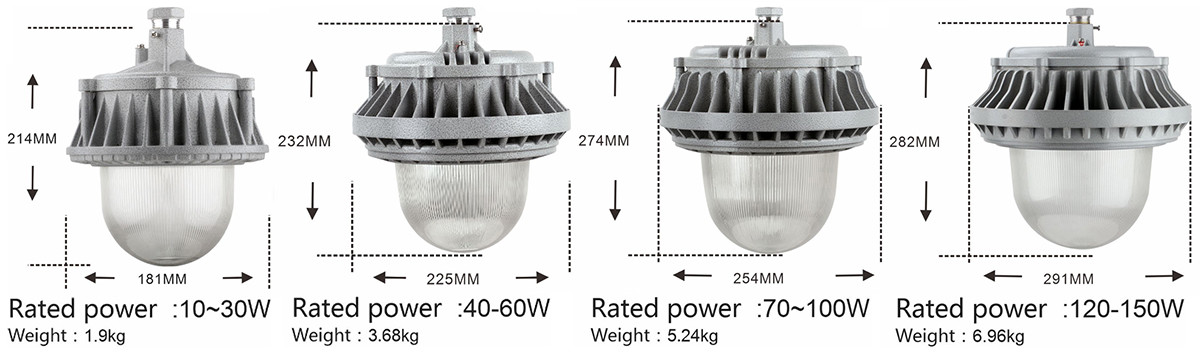

Installation Dimensions
| Serial Number | Specifications and Model | Luminaire Housing Type | Power Range (W) | Φ (mm) | A (mm) | H (mm) |
| 1 | BED60-30W | I | 10-30 | 181 | 80 | 145 |
| 2 | BED60-60W | II | 40-60 | 225 | 95 | 161 |
| 3 | BED60-100W | III | 70-100 | 254 | 95 | 175 |
| 4 | BED60-150W | IV | 120-150 | 291 | 120 | 180 |
| Serial Number | Name | Remarks | Serial Number | Name | Remarks |
| 1 | Explosion-Proof Maintenance-Free Energy-Saving LED Light | / | 7 | 1 1/4 Guardrail-Style Light Pole + Aluminum Alloy Elbow | User-selectable |
| 2 | Explosion-Proof Pendant Light Housing AH-G3/4" | User-selectable | 8 | U-Shaped Pipe Clamp + Clamping Plate + Nut + Washer | User-selectable |
| 3 | 300mm G3/4" Straight Rod | Length options available User-selectable | 9 | Explosion-Proof Pipe Fitting BGJ-G3/4" Dual External | User-selectable |
| 4 | Explosion-Proof Union BHJ-G3/4" (One Internal, One External) | User-selectable | 10 | Explosion-Proof Junction Box AH-G3/4"C Tee Flat Cover | User-selectable |
| 5 | 300mm G3/4" Curved Rod with Brace, 30° | User-selectable | 11 | 1 1/4 Flange-Style Light Pole + Aluminum Alloy Elbow | User-selectable |
| 6 | 300mm G3/4" Curved Rod with Brace, 90° | User-selectable | 12 | Mounting Bracket | User-selectable |
Applicable Scope
1. Suitable for Zone 1 and Zone 2 locations in explosive gas environments;
2. Suitable for Class IIA, IIB, and IIC explosive gas environments;
3. Suitable for Zone 21 and Zone 22 locations in explosive dust environments;
4. Suitable for Class IIIA, IIIB, and IIC explosive dust environments;
5. Suitable for temperature classes T1 to T6;
6. Suitable for energy-saving retrofit projects and locations where maintenance or replacement is difficult;
7. Widely used for lighting in petroleum extraction, refining, chemical processing, military manufacturing, textile production, food processing, offshore oil platforms, oil tankers, and similar applications.
SH-C-XF80 Emergency Lighting Controller
Model Meaning
Implementation Standard
GB 17945、GB 51309
Technical Parameter
| Product Model | SH-C-XF80 |
| Dimensions (W × D × H) | 600mm × 600mm × 1830mm |
| Power Supply | AC 96-276V 50Hz (Fire Protection Power Supply) |
| Battery | 12AH 1 Cell |
| Communication Interface | CAN × 1 channel, RS485 × 1 channel, Active contact × 1 channel | CAN, USB, RS232, RS485, RJ45 |
| Networking Capability | 1 CAN bus channel. Each channel connects up to 32 addressable devices | 4-channel CAN bus. Each channel connects to 32 addressable devices. |
| Load Communication Method | R-BUS communication + non-polarized dual-bus power supply |
| Networking Distance | Bus design distance up to 1000 meters; fiber optic or CAN repeaters recommended for distances >1000 meters |
| Standby Time | >180 min |
| Printer | Thermal printer (customer-supplied) |
| Display Device | 8-inch industrial touchscreen |
| Installation Method | Vertical |
| Operating Environment | Temperature: -20°C to 55°C, Relative humidity: <95% RH (non-condensing) |
Product Features
1. Automatically monitors operational status of system equipment and emergency lighting fixtures, featuring annual and monthly inspection functions;
2. Built-in backup power provides ≥180 minutes of emergency runtime, with IP33 protection rating and stable CAN bus communication; historical event logs display all critical operations and system statuses;
3. Exceptional load capacity supporting over 18,000 luminaires; automatically performs annual and monthly equipment inspections, displays real-time system device statuses, integrates with FAS systems via dry contacts or protocols, dynamically displays multiple evacuation guidance schemes, and enables custom on/off control of backend luminaires during normal operation;
4. Supports various auxiliary functions during routine operation; allows creation of user accounts to configure system communication parameters and user permissions.
SH-D-BXK58 Series Emergency Lighting Centralized Power Supply
Model Meaning
Implementation Standard
GB/T3836.1、GB/T3836.2、GB/T3836.3、GB/T3836.31、GB 17945、GB 51309、IEC 60079-0、IEC 60079-1、IEC 60079-7、IEC 60079-31
Explosion-Proof Marking
Ex db eb IIC T6 Gb, Ex tb IIICT80°C Db;
Technical Parameter
| Product Model | SH-D-0.15KVA-BXK58 |
| Charger | Input Voltage | AC 220V ±25%, 50Hz | Emergency Output | Output Voltage | DC 36V |
| Main Power Consumption | 2.5W | Output Power | 4 circuits, total power 150W |
| Charging Method | Automatic conversion between equalization and float charging | Emergency Switchover | <5 seconds |
| Battery | Emergency Duration | ≥90 min | Operating Environment | Dimensions | 894mm × 600mm × 355mm |
| Charging Time | ≤24 h | Protection Rating | IP66 |
| Rated Voltage | DC 36V | Mounting Method | Wall-mounted |
| Battery Type | Lithium battery | Operating Environment | Temperature 0°C to +55°C; Relative humidity <95% |
| Battery Model | 36V 11Ah | Compliance Standards | GB17945-2010 |
| Single Cell Capacity | 11Ah/36V | | |
| Number of Batteries | 1 cell/1 pack | | |
| Product Model | SH-D-0.30KVA-BXK58 |
| Charger | Input Voltage | AC 220V ±25%, 50Hz | Emergency Output | Output Voltage | DC 36V |
| Main Power Consumption | 2.5W | Output Power | 4 circuits, total power 150W |
| Charging Method | Automatic conversion between equalization and float charging | Emergency Switchover | <5 seconds |
| Battery | Emergency Duration | ≥90 min | Operating Environment | Dimensions | 894mm × 600mm × 355mm |
| Charging Time | ≤24 h | Protection Rating | IP66 |
| Rated Voltage | DC 36V | Mounting Method | Wall-mounted |
| Battery Type | Lithium battery | Operating Environment | Temperature 0°C to +55°C; Relative humidity <95% |
| Battery Model | 36V 17Ah | Compliance Standards | GB17945-2010 |
| Single Cell Capacity | 17Ah/36V | | |
| Number of Batteries | 1 cell/1 pack | | |
| Product Model | SH-D-0.30KVA-BXK58 |
| Charger | Input Voltage | AC 220V ±25%, 50Hz | Emergency Output | Output Voltage | DC 36V |
| Main Power Consumption | 2.5W | Output Power | 4 circuits, total power 150W |
| Charging Method | Automatic conversion between equalization and float charging | Emergency Switchover | <5 seconds |
| Battery | Emergency Duration | ≥90 min | Operating Environment | Dimensions | 894mm × 600mm × 355mm |
| Charging Time | ≤24 h | Protection Rating | IP66 |
| Rated Voltage | DC 36V | Mounting Method | Wall-mounted |
| Battery Type | Lithium battery | Operating Environment | Temperature 0°C to +55°C; Relative humidity <95% |
| Battery Model | 36V 34Ah | Compliance Standards | GB17945-2010 |
| Single Cell Capacity | 36Ah/36V | | |
| Number of Batteries | 1 cell/1 pack | | |
Structural Features and Working Principle
1. The power supply circuit primarily consists of the main power circuit and the backup power circuit. When the main power is operational, it simultaneously charges the backup power and the battery. When the battery is fully charged, the charger automatically switches to float charging mode to counteract the battery’s self-discharge, ensuring the battery’s capacity during power supply.
2. When the main power fails, the centralized power supply automatically detects the loss of AC power. Through software algorithm processing and logical judgment, it automatically switches to emergency mode. Upon restoration of mains power, the control system immediately reverts to normal mains operation. When a system fault occurs, fault information is automatically uploaded to the emergency lighting controller. The software processes this via logical judgment, storing fault records in the database for subsequent review while simultaneously activating an audible alarm. If the event requires transition to emergency mode, the control system switches to emergency operation. Additionally, the central power supply unit features automatic annual and monthly system inspection functions.
3. The centralized power supply allocates 8 independent circuits to luminaires. Communication with luminaires employs a 2-wire mode, featuring non-polarity for both power and signals, along with automatic short-circuit protection. The system exhibits strong anti-interference capabilities and facilitates easy installation.
4. The SH-D-0.15KVA-BXK58 centralized power supply comprises three sections: display module, main control module, and acquisition module (circuit board). Modules communicate via RS485, facilitating troubleshooting when issues arise.
5. All external connection cables of the SH-D-0.15KVA-BXK58 centralized power supply are connected to a terminal block, facilitating wiring. 6. The SH-D-0.15KVA-BXK58 centralized power supply communicates with a PC via CAN bus, ensuring reliable transmission and high real-time performance.
Product Features
1. Intelligent microprocessor control/DSP digital control with SVPWM modulation technology, featuring comprehensive functionality;
2. LED LCD display and audible/visual fault alarms for simplified maintenance;
3. Automatic instantaneous switching enables unattended operation;
4. Silent operation at standby, pollution-free, non-hazardous, energy-efficient, minimal power consumption during non-emergency control;
5. Reliable quality, best cost-performance ratio among comparable products, complete protection functions;
6. Strong overload capacity, comprehensive protection features.
Applicable Scope
1. Suitable for explosive gas environments: Zone 1, Zone 2;
2. Suitable for combustible dust environments: Zone 21, Zone 22;
3. Designed for hazardous environments in petroleum extraction, refining, chemical processing, and military industries as general lighting or dedicated emergency lighting during power outages.
SH-ZFJC-E18W-BED60 Centralized Power Supply and Control Fire Emergency Lighting Fixture
Model Meaning
Implementation Standard
GB/T3836.1、GB/T3836.2、GB/T3836.31、GB 17945、GB 51309、IEC 60079-0、IEC 60079-1、IEC 60079-31
Technical Parameter
| Model Specifications | Explosion-proof Marking | Light Source | Power (W) | Luminous Flux (lm) | Color Temperature (K) |
| SH-D-0.15KVA-BXK58 | Ex db IICT6 Gb,
Ex tb IIlIC T80°C Db | LED | 18 | 2400 | 3000~5700 |
| Rated Voltage | Inlet Thread | Cable Outer Diameter | Protection Rating | Corrosion Resistance Rating |
| DC24/36V | G3/4" | Φ10~14mm | IP66 | WF1, WF2* |
Light Distribution Curve
Product Features
1. Non-polar connection;
2. Handheld encoder coding;
3. Independent short-circuit protection with self-reset capability;
4. Product features a special die-cast aluminum alloy housing with high-pressure electrostatic powder coating;
5. Stainless steel exposed fasteners for high corrosion resistance;
6. Die-cast aluminum alloy housing undergoes high-speed shot blasting followed by high-pressure electrostatic powder coating for corrosion resistance and aging resistance;
7. Evacuation symbols are freely selectable by users or customizable upon request;
8. Utilizes ultra-high brightness LED light source with low power consumption and long lifespan, enabling long-term maintenance-free operation;
9. Permanently illuminated mode automatically charges during normal power supply and activates automatically during accidents or power outages.
Installation Dimensions
