Dimensions and Specifications of Explosion-Proof Operation Column

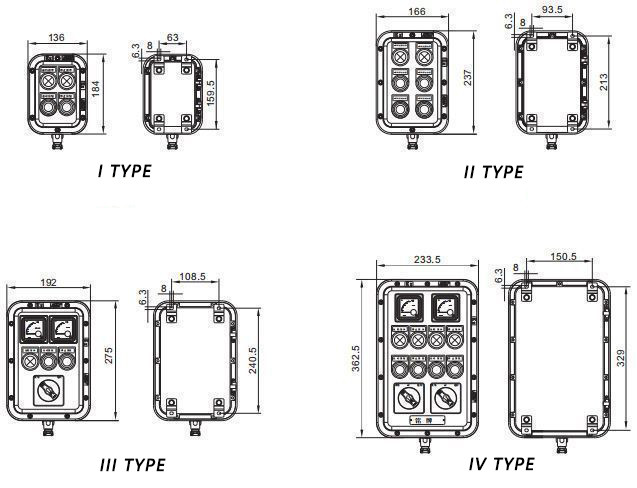

dimensions and specifications of explosion-proof operation column-1

TypeLength (mm)Width (mm)Height (mm)
Type I184159.5136
Type II237213166
Type III275240.5192
Type IV362.5329233.5

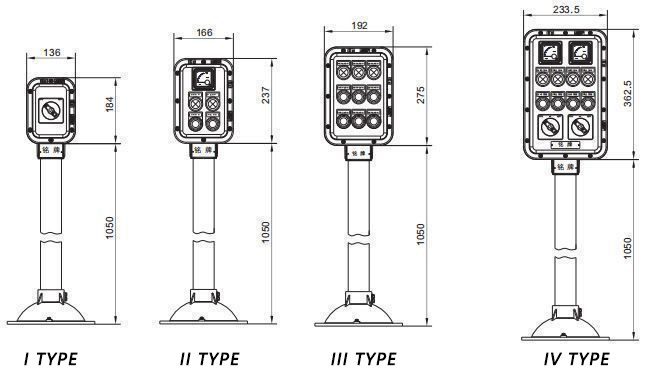

dimensions and specifications of explosion-proof operation column-2
dimensions and specifications of explosion-proof operation column-3
TypeLength (mm)Width (mm)Height (mm)
Type I1234159.5136
Type II1287213166
Type III1325240.5192
Type IV1412.5329233.5
Type V1362329233.5
Type VI1432329233.5
Type VII1480329233.5
